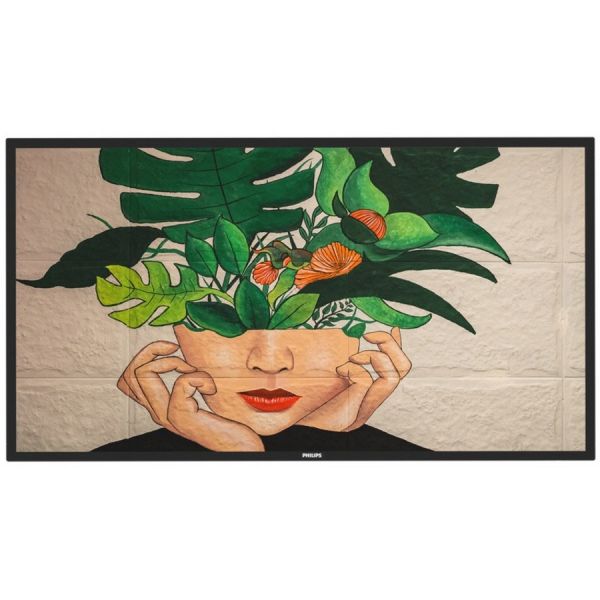

Philips Signage Solutions D-Line Display

Marketing Information

Say more

Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between pri...mary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

Optional OPS Slot

Open Pluggable Specification is an industry standard slot in to which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need. Turning your display in to an all-in-one digital signage solution has become simplicity personified.

Specifications
Manufacturer: Philips Electronics
Manufacturer Part Number: 86BDL4511D/00
Manufacturer Website Address: http://www.philips.co.uk
Brand Name: Philips
Product Line: D-Line
Product Model: 86BDL4511D
Product Name: Signage Solutions D-Line Display
Product Type: Digital Signage Display
Technical Information
Bezel Width: 15.50 mm
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 85.6"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Pixel Pitch: 0.49 mm
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
DVI: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of HDMI Inputs: 3
Number of HDMI Outputs: 1
Number of DisplayPorts: 2
Number of DVI Ports: 1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
VESA Mount Standard: 400 x 400
Mount Type: Wall Mountable
Height: 110 cm
Width: 192.9 cm
Depth: 7 cm
Weight (Approximate): 50.24 kg
Miscellaneous
Package Contents:

• Signage Solutions D-Line Display
• Cover for AC Switch
• 1 x Philips Logo
• RS232 Daisy Chain Cable
• Power Cord
• 1 x IR Sensor Cable (1.8m)
• 1 x Quick Start Guide
• Remote Control
• AAA Batteries
• RS232 Cable
• USB Cover
• 1 x Screw
• 3 x Cable Clips

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Energy Efficiency Certification: China Energy Conservation Program (CECP)
