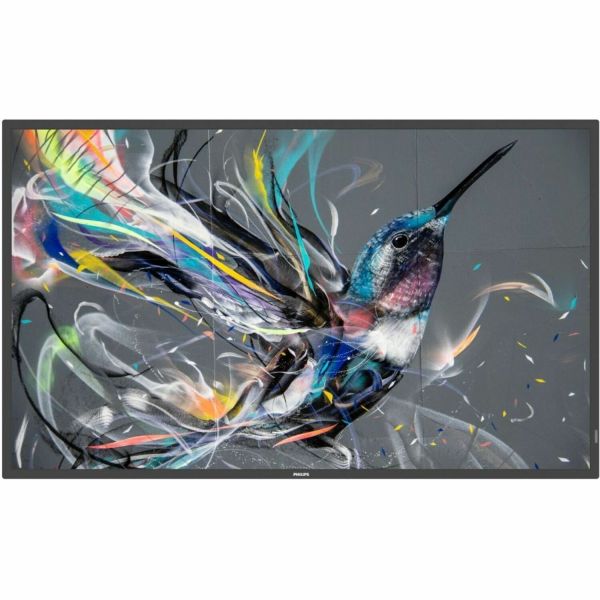

Philips Signage Solutions Q-Line Display

Marketing Information

Display better

Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.

Display better | EcoDesign 18/7 display50"

• Direct LED Backlight
• Ultra HD

100% recycled and recyclable packaging

Designed with manufacturing processes, physical features, materials, packaging, and built-in software that are kinder to the environment and deliver better energy efficiency, the Philips Signage 3650 EcoDesign display is designed to operate using less than half the power of its counterp...arts, while still delivering the same unrivalled performance.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using the optional CRD22 Wifi module or via LAN, and enjoy your own created playlists.

EPEAT Silver Climate+ certified

Recognised by and registered with EPEAT with a Silver Climate+ Ecolabel, the Philips Signage 3650 EcoDesign QE-Line meets the robust set of criteria laid out by the world's premier ecolabel for electronics.

FailOver. Ensure content is always running

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Optional Interact for wireless screen share

Wirelessly screen share using your existing Wifi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

PPDS Wave ready for remote management

Unlock the power, versatility and intelligence inside your Philips Signage 3650 EcoDesign displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy, and environmental impact.

Wifi and Bluetooth 5.2 via optional module

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Specifications
Manufacturer: Philips Electronics
Manufacturer Part Number: 50BDL3650QE/00
Manufacturer Website Address: http://www.philips.co.uk
Brand Name: Philips
Product Line: Q-Line
Product Model: 50BDL3650QE
Product Name: Signage Solutions Q-Line Display
Product Type: Digital Signage Display
Technical Information
On Screen Display (OSD) Languages: English
Bezel Width: 14.90 mm
Panel Technology: Vertical Alignment (VA)
Operation Hours: 18 Hours/7 Days
Processor & Chipset
Processor Type: Cortex A55
Processor Core: Quad-core (4 Core)
2nd Processor Type: Cortex A53
2nd Processor Core: Dual-core (2 Core)
2nd Processor Speed: 1.15 GHz
3rd Processor Type: Cortex A73
3rd Processor Speed: 1.15 GHz
3rd Processor Core: Dual-core (2 Core)
Memory
Standard Memory: 3 GB
Memory Technology: DDR SDRAM
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 49.5"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
Response Time: 8 ms
Pixel Pitch: 0.29 mm
Aspect Ratio: 16:9
Backlight Technology: Direct LED
Graphics Controller Model: G52 MC1
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 500,000:1
Native Contrast Ratio: 4,000:1
Brightness: 400 cd/m²
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
USB: Yes
DVI: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
Number of HDMI Inputs: 2
Number of DVI Ports: 1
Number of HDMI 2.0 Ports: 2
Software
Operating System: Android 10
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 60°C
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 400 x 400
Mount Type: Wall Mountable
Height: 64.9 cm
Width: 112.8 cm
Depth: 6.4 cm
Weight (Approximate): 14.25 kg
Miscellaneous
Package Contents:

• Signage Solutions Q-Line Display
• 1 x IR sensor cable (1.8m)
• RS232 daisy chain cable
• 1 x Philips logo
• AC power cord
• AC switch cover
• 2 x Cable Clip
• Fast guide
• RS232 cable
• 1 x USB Output Cover

Application/Usage: Commercial
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Japanese Restriction of Hazardous Substances
