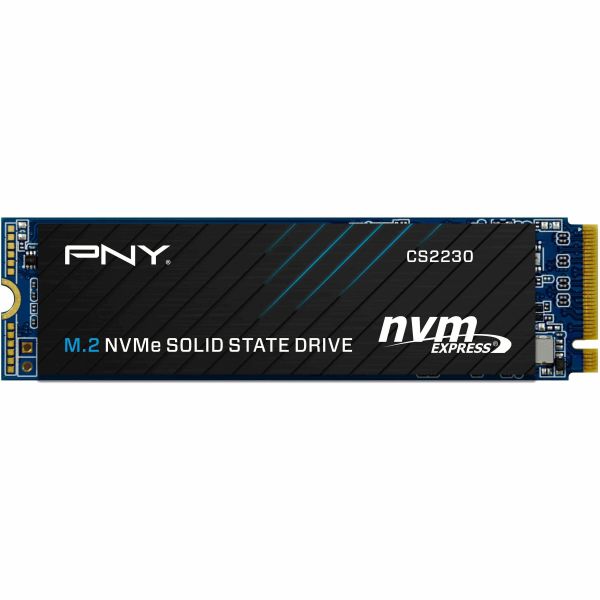

PNY CS2230 Solid State Drive

Marketing Information

High Performance

Transfer speed faster than a traditional SSD

Enhanced Reliability

Non-volatile NAND up to 30 times more robust than HDDs

5-Year Limited Warranty or TBW

Extended protection and peace of mind

CS2230 SOLID STATE DRIVES

The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; book up, power down, and load applicati...ons up to 6 times faster than with SATA based on SSD's.

The NVMe interface delivers exceptional performance of up to 3,400 MB/s seq. read and 2,700 MB/s seq. write speeds. It is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. With no moving parts, the PNY CS2230 is highly durable, less likely to fail, and support a 5-year limited warranty or TBW.

The PNY CS2230 is engineered with the same level of quality and durability that our customers have enjoyed with the CS900 SSD. We've taken the world's most advanced NAND flash and refined the CS2230 to achieve a higher threshold for endurance and reliability. PNY's extensive testing and rigorous validation process ensures compatibility across various platforms and multiple operating systems.

APPLICATIONS

• NVMe upgrade from a SATA based solid state drive (SSD) in an NVMe enabled PC or MAC desktop or laptop computer
• SSD with up to 6 times the performance as compared to SATA based SSDs

FEATURES AND BENEFITS

• Sequential Read of up to 3,400 MB/s and Write of up to 2,700 MB/s
• Faster boot up, quicker application launch
• Better overall system performance
• Reliable storage
• Low power consumption, cool and quiet operation

Specifications
Manufacturer: PNY Technologies
Manufacturer Part Number: M280CS22301TBRB
Manufacturer Website Address: http://www.pny.co.uk
Brand Name: PNY
Product Model: CS2230
Product Name: CS2230 Solid State Drive
Packaged Quantity: Box
Product Type: Solid State Drive
Technical Information
Storage Capacity: 1 TB
Platform Supported:

• PC
• Mac

Features:

• S.M.A.R.T
• TRIM Support
• End-to-end Data Protection

Drive Performance
Maximum Sequential Read: 3.22 GB/s
Maximum Sequential Write: 2.54 GB/s
Mean Time Between Failures (MTBF): 114.1 Year
Interfaces/Ports
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 3.0 x4
Physical Characteristics
Drive Type: Internal
Form Factor: M.2 2280
Height: 4 mm
Width: 22 mm
Depth: 80 mm
Weight (Approximate): 6.6 g
Miscellaneous
Device Supported:

• Desktop PC
• Notebook

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
