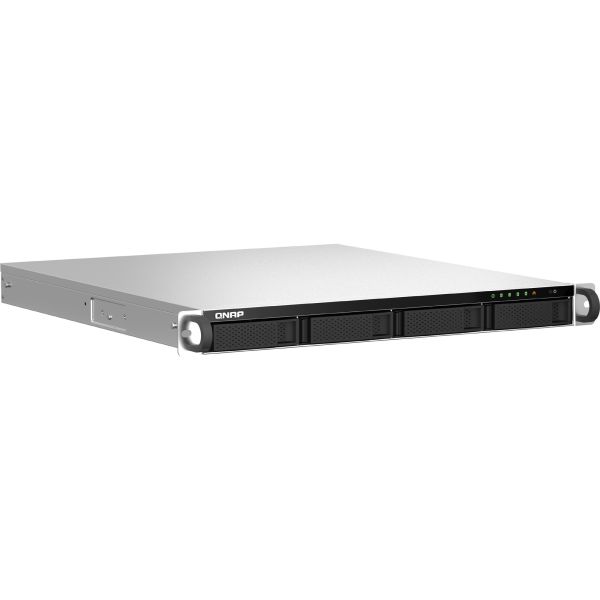

QNAP TS-464U-8G SAN/NAS Storage System
Number of Total Expansion Slots | 1 |
---|---|
Number of Hard Drives Supported | 4 |
Number of Hard Drives Installed | 0 |
Product Type | SAN/NAS Storage System |
Standard Memory | 8 GB |
Operating System | QTS 5.0.1 |
Form Factor | Rack-mountable |
Processor Type | Celeron |
RAID Levels | 0, 1, 5, 6, 10, JBOD |
Controller Type | Serial ATA/600 |
Rack Height | 1U |
Brand Name | QNAP |
Expansion Slot Type | PCI Express 3.0 x2 |
Flash Memory Capacity | 4 GB |
RAID Supported | Yes |
Ethernet Technology | 2.5 Gigabit Ethernet |
Number of Total Expansion Bays | 4 |
HDMI | Yes |
Network (RJ-45) | Yes |
Maximum Power Supply Wattage | 250 W |
Total Number of USB Ports | 4 |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Description
TS-464U
Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications
Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-464U features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combine bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U provides flexibility in extending NAS functionality, allowing you to install various cards: 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U also supports AES 256-bit encryption to ensure the confidentiality of sens...itive business data without affecting system performance.
- 2.5GbE connectivityUp to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
- PCIe expandabilityInstall a PCIe Gen3 x2 card to expand the core functionality of the TS-464U, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
- SnapshotsProtect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.
- License-free virtualized environmentHost multiple containerized apps to run a wide range of applications and services.
- Drives Auto-TieringQtier™ auto-tiering technology and SSD caching enable constant storage optimization.
- Flexible expansionScale your storage capacity to fit growing data needs by connecting QNAP's expansion units.
Quad-core high performance and up to 16GB RAM
The TS-464U is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.
Streamline large file transfers and video editing with 2.5GbE
The TS-464U comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.
Future-proof your IT infrastructure for high-speed networks
The TS-464U is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TS464U8G
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Model: TS-464U-8G
Product Name: TS-464U-8G SAN/NAS Storage System
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 4 GB
Processor & Chipset
Processor Type: Celeron
Processor Model: N5095
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 2.5"/3.5" Bays: 4
Total Number of Expansion Slots: 1
Expansion Slot Type: PCI Express 3.0 x2
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, JBOD
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: QTS 5.0.1
Management & Protocols
Protocols:
- LDAP
- HTTPS
- L2TP
- SFTP
- DHCP
- WEBDAV
- SNMPv2
- SSH
- IPSec
- FTPS
- AFP
- FTP
- CIFS/SMB
- IPv4
- Telnet
- SSL
- iSCSI
- TLS
- NFS
- HTTP
- TFTP
- FXP
- DDNS
- IPv6
- PPTP
Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 250 W
Physical Characteristics
Height: 43.3 mm
Width: 430 mm
Depth: 479 mm
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 7.52 kg
