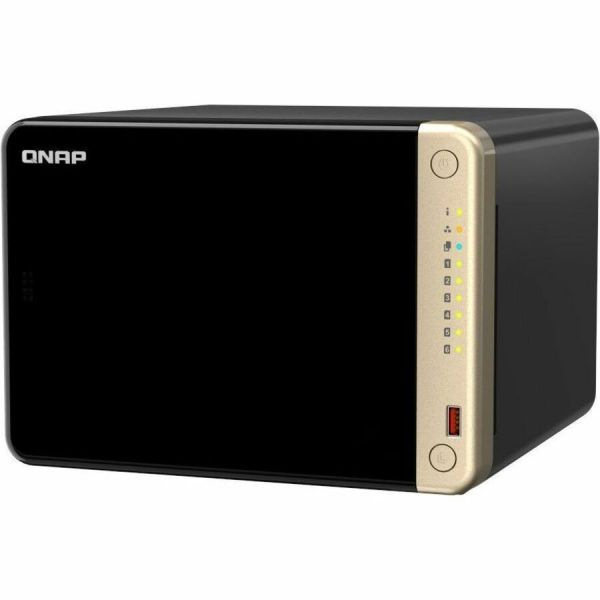

QNAP Turbo NAS TS-664-8G SAN/NAS Storage System

Marketing Information

TS-664 | Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications

Powered by an Intel® Celeron® N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real...-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

• 2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

• M.2 SSD caching

  Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

• PCIe expandability

  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

• License-free virtualized environment

  Host multiple containerized apps to run a wide range of applications and services.

• Drives Auto-Tiering

  Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

• 4K HDMI

  4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.

Quad-core high performance

The TS-664 is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI-powered image recognition and caching with TPU and PCIe expansion

The TS-664 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage

The TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TS6648G
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Line: Turbo NAS
Product Series: TS-x64
Product Model: TS-664-8G
Product Name: Turbo NAS TS-664-8G SAN/NAS Storage System
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 6
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 6
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 4 GB
Processor & Chipset
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Celeron
Processor Model: N5095
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 6
Number of 2.5"/3.5" Bays: 6
Total Number of Expansion Slots: 1.0
Expansion Slot Type: PCI Express 3.0 x2
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, JBOD
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: QTS 5.1.3
Management & Protocols
Protocols:

• IPv4
• IPv6
• DHCP
• CIFS/SMB
• AFP
• NFSv3
• FTP
• FTPS
• SFTP
• TFTP
• HTTP
• HTTPS
• Telnet
• SSH
• iSCSI
• SNMP
• SSL/TLS
• FXP
• WEBDAV
• LDAP
• DDNS
• DNS
• SNMPv2
• SNMPv3
• PPTP
• L2TP
• NFSv4

Power Description
Maximum Power Supply Wattage: 120 W
Physical Characteristics
Height: 165 mm
Width: 235 mm
Depth: 226.5 mm
Form Factor: Tower
Weight (Approximate): 2.94 kg
