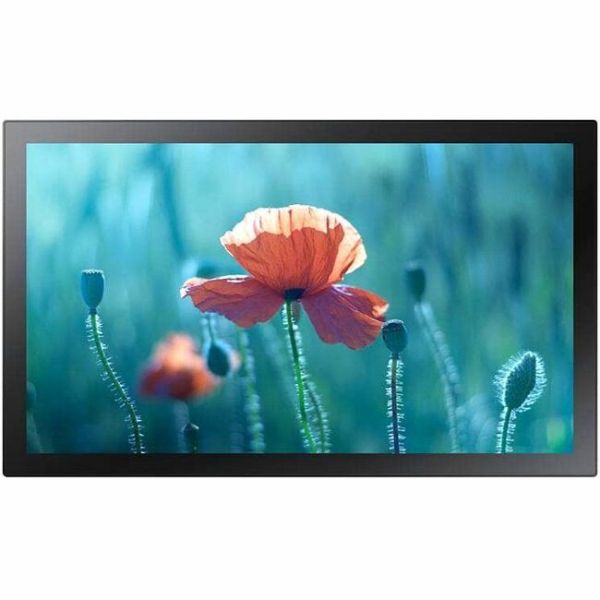

Samsung QB13R-T Digital Signage Display

Marketing Information

Features | Improved engagement with intuitive interaction

Samsung's QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Fast, effective touch capabilities

With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

Crisp and visible content

The dis...play supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Slim, smart design

The compact and slim design of the QB13R-T allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

The QB13R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Specifications
Manufacturer: Samsung
Manufacturer Part Number: LH13QBRTMGCXEN
Manufacturer Website Address: http://www.samsung.com/uk/
Brand Name: Samsung
Product Model: QB13R-T
Product Name: QB13R-T Digital Signage Display
Product Type: Digital Signage Display
Technical Information
Bezel Width: 13.10 mm
Ingress Protection (IP) Rating: IP5X
Operation Hours: 16 Hours/ 7 Days
Processor & Chipset
Processor Type: Cortex A72
Processor Speed: 1.70 GHz
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 2.50 GB
Memory Technology: LPDDR4
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 13"
Display Screen Type: LCD
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
Display Resolution: 1920 x 1080
Pixel Pitch: 0.15 mm
Backlight Technology: Edge LED
Video
Scan Format: 1080p
Colour Depth: 6-bit
Brightness: 500 cd/m²
Color Gamut: 45%
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
Serial: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 1
Software
Operating System:

• Tizen 4.0
• VDLinux

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
VESA Mount Standard: 100 x 100
Mount Type: Wall Mountable
Height: 19.4 cm
Width: 32.2 cm
Depth: 3 cm
Weight (Approximate): 1.10 kg
Miscellaneous
Package Contents:

• QB13R-T Digital Signage Display
• Quick Setup Guide
• Warranty Card
• Power Cord
• Remote Controller
• Batteries
• Bar Type Simple Stand
• USB Cable

Application/Usage: Business
