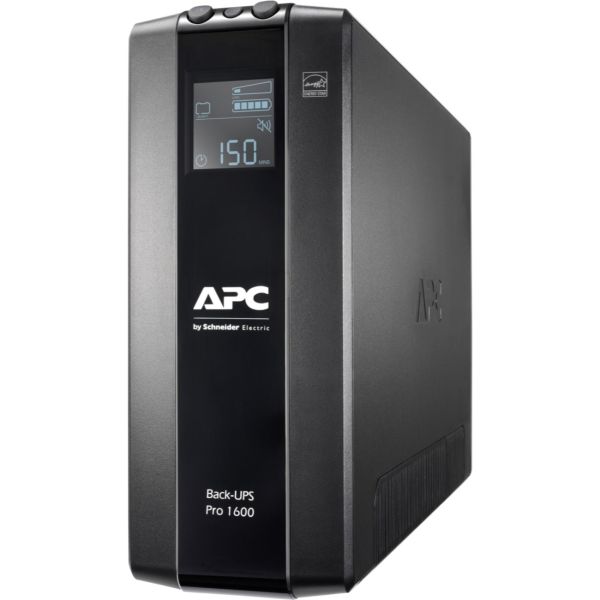

Schneider Electric Back-UPS Pro BR1600MI 1.6KVA Tower UPS

Marketing Information

Back-UPS Pro

High Performance Computer and Electronics UPS for Premium Power Protection

The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network ma...nageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: BR1600MI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: Schneider Electric
Product Line: Back-UPS Pro
Product Series: BR
Product Model: BR1600MI
Product Name: Back-UPS Pro BR1600MI 1.6KVA Tower UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Number of Surge-only Outlets: 2
Dataline Protection: RJ-45
Overload Protection: Yes
Transfer Time: 0 ns
Application/Usage:

• Computer
• Electronic
• Router
• Modem
• Storage Device
• Gaming Console
• Home
• Business
• Office
• Mission Critical Equipment
• Workstation
• Multimedia Device
• Smartphone
• Tablet
• Equipment
• Surveillance System

Power Description
Load Capacity (VA): 1.60 kVA
Load Capacity (Watt): 960 W
Input Voltage: 230 V AC
Input Voltage Range: 176 V AC - 294 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 509 J
Management
Alarm:

• Low Battery
• Overload
• On Battery
• Replace Battery

Controls/Indicators
Status Indicators:

LCD Status Display:

• Multiple Status
• Load Bar Graphs
• Battery Bar Graphs


Interfaces/Ports
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Maintenance-free, Sealed, Water-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.60 Minute
Backup/Run Time (Half Load): 10.40 Minute
Typical Battery Recharge Time: 16 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 15 km
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 21.50 BTU/h
Physical Characteristics
Height: 100 mm
Width: 250 mm
Depth: 382 mm
Form Factor: Tower
Weight (Approximate): 10.90 kg
