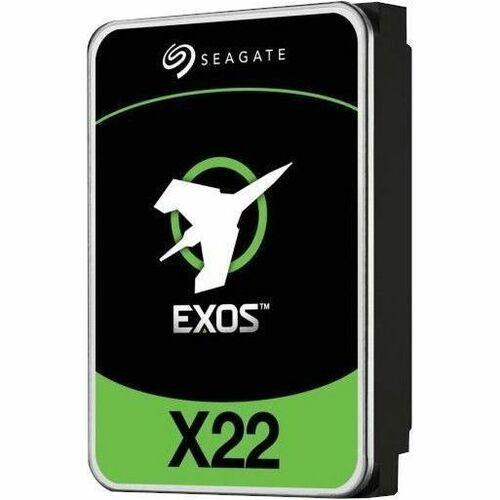

Seagate Exos ST22000NM004E Hard Drive

Marketing Information

Powerful performance with proven technology-Seagate's ® Exos® X22 drives are built off the platform that's shipped millions globally and deployed in leading cloud service provider solutions making them the most sought-after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X22 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.

Best-Fit Applications

• Scalable hyperscale applications/cloud data centers
• Massive scale-out data centers Big data applications
• High-capacity density RAID storage
• Mainstream enterprise external storage arrays
• Distributed ...file systems, including Hadoop and Ceph
• Enterprise backup and restore D2D, virtual tape
• Centralized surveillance

Maximum Storage Capacity for Highest Rack Space Efficiency

Market-leading 22TB HDD offering the highest capacity available for more petabytes per rack 1

Highly reliable performance with enhanced caching-making it the logical choice for cloud data center and massive scale-out data center applications

Hyperscale SATA model tuned for large data transfers and low latency PowerBalance™ feature optimizes watts per TB

Maximize total cost of ownership savingsthrough lower power and weight with helium-sealed drive design Proven helium side-sealing weld technology for added handling, robustness, and leak protection

Digital environmental sensorsto monitor internal drive conditions for optimal operation and performance

Data protection and security-featuring Seagate Secure for safe, affordable, fast, and easy drive retirement

Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating

Specifications
Manufacturer: Seagate Technology
Manufacturer Part Number: ST22000NM004E
Manufacturer Website Address: http://www.seagate.com
Brand Name: Seagate
Product Line: Exos
Product Series: X22
Product Model: ST22000NM004E
Product Name: Exos ST22000NM004E Hard Drive
Product Type: Hard Drive
Technical Information
Storage Capacity: 22 TB
Recording Technology: Conventional Magnetic Recording (CMR)
Disk Format: 512e/4Kn
Drive Performance
Spindle Speed (rpm): 7200
Buffer: 512 MB
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SAS
Drive Interface Standard: 6Gb/s SAS
Physical Characteristics
Drive Type: Internal
Hot Pluggable: Yes
Height: 26.1 mm
Width: 101.9 mm
Depth: 147 mm
Weight (Approximate): 680 g
Miscellaneous
Device Supported: Storage System
