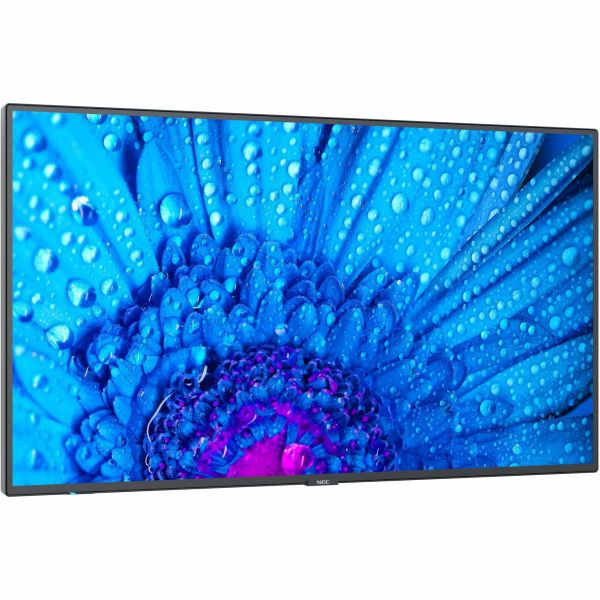

Sharp NEC Display 75" Ultra High Definition Professional Display

Marketing Information

Create pixel perfect imagery with the high-end panel quality of the new fully professional large sized NEC M series large format displays. By implementing premium features and focusing on creating impressionable presentation and digital signage experiences, the M series gives customers and elite display option. With the proprietary SpectraView Engine capabilities, these displays offer more color capabilities than ever before. On top of that, these products allow customers the modular capabilities to customize their product based on their needs and applications. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allo...w the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of high end presentaion applications in corporate, command and control, higher education and healthcare environments when high-end and feature rich displays are necessary to convey important messaging.

• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
• 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
• Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
• Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
• Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support through proprieatry slot
• Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
• 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
• Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections
• Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
• Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
• Energy Star 8.0 Certified Product
• Full 3 year commercial warranty to allow for peace of mind and protection of your investment
• NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Specifications
Manufacturer: Sharp
Manufacturer Part Number: 60005064
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: Sharp NEC Display
Product Line: MultiSync
Product Series: M
Product Model: M751
Product Name: 75" Ultra High Definition Professional Display
Product Type: Digital Signage Display
Technical Information
Bezel Width (Bottom): 14.80 mm
Bezel Width (Top): 14.30 mm
Bezel Width (Left): 14.30 mm
Bezel Width (Right): 14.30 mm
Ingress Protection (IP) Rating:

• IP5X
• IP2X

Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Display & Graphics
Number of Screens: 1
Viewable Screen Size: 75"
Display Screen Type: LCD
Display Resolution: 3840 x 2160
High Dynamic Range (HDR): Yes
High Dynamic Range (HDR) Type:

• PQ
• HLG
• HDR10

Response Time: 8 ms
Pixel Pitch: 0.43 mm
Aspect Ratio: 16:9
Backlight Technology: Direct LED
Orientation: Landscape/Portrait
Video
Scan Format: 2160p
Dynamic Contrast Ratio: 8,000:1
Colour Depth: 10-bit
Brightness: 500 cd/m²
Color Gamut: 72%
Network & Communication
Ethernet: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of HDMI Inputs: 2
Number of HDMI Outputs: 1
Number of DisplayPorts: 3
RS-232C Input: Yes
Number of Network (RJ-45) Ports: 1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 60°C
Minimum Operating Humidity: 20%
Maximum Operating Humidity: 80%
Minimum Storage Humidity: 10%
Maximum Storage Humidity: 80%
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Standard: 600 x 400
Mount Type:

• Wall Mountable
• Table Mount

Height: 96.1 cm
Width: 168.2 cm
Depth: 8.3 cm
Weight (Approximate): 38 kg
Miscellaneous
Package Contents:

• 75" Ultra High Definition Professional Display
• 2x AAA Batteries
• Remote Control
• HDMI Cable
• Power Cable
• Setup Manual

Application/Usage: Conference Room
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Energy Efficiency Certification: ENERGY STAR 8.0
