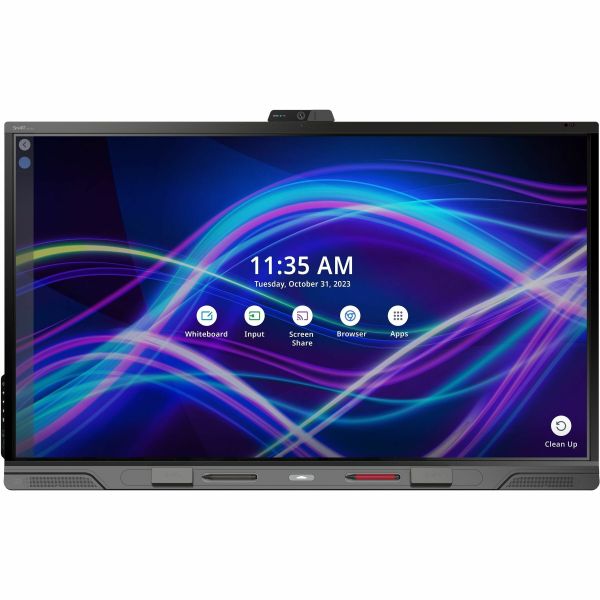

SMART SMART Board QX075-P Interactive Display with iQ

Marketing Information
The SMART Board® QX Pro series is the unmatched all-in-one technology solution designed for the dynamic needs of the modern workplace. The QX Pro series puts everything you need to deliver a seamless interactive and collaborative meeting experience in one place.

Specifications
Manufacturer: SMART Technologies, Inc
Manufacturer Part Number: SBIDQX275P
Manufacturer Website Address: http://www.smarttech.com
Brand Name: SMART
Product Line: SMART Board
Product Series: QX Pro
Product Model: QX075-P
Product Name: SMART Board QX075-P Interactive Display with iQ
Product Type: Interactive Whiteboard
Technical Information
Screen Size: 190.5 cm (75")
Aspect Ratio: 16:9
Multi-touch Screen: Yes
Connectivity Technology: Wired/Wireless
Built-in Devices
Built-in Devices:

• Speaker
• Subwoofer

Network & Communication
Bluetooth: Yes
Near Field Communication: Yes
Interfaces/Ports
HDMI: Yes
Number of USB 2.0 Ports: 1
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Operating Power Consumption: 117 W
Physical Characteristics
Product Color: Black
Platform Supported:

• Windows
• Mac
• Linux
• Android
• ChromeOS

Height: 1116 mm
Width: 1746 mm
Depth: 109 mm
Weight (Approximate): 56.25 kg
Miscellaneous
Additional Information:

• Operating temperature 41-95°F (5-35°C)
• Storage temperature -4-140°F (-20-60°C)
• Humidity 5-80% relative humidity, non-condensing
• Bluetooth 5.2 dual mode
• Operating system: Android version 11
• Memory: 8 GB DDR
• Storage: 32 GB (up to 544 GB)
• Screen sharing: Yes

Inputs:

• OPS PC accessory slot (100 W devices): 1
• MicroSD slot with security cover: 1
• HDMI® 2.1 with HDCP 1.4 and HDCP 2.3 support: 3
• VGA video: 1
• Stereo 3.5 mm (variable): 1
• RS-232 (DB-9 connector): 1
• RJ45 (LAN IN): 1
• USB Type-C 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65 W power delivery: 2
• USB Type-C, SuperSpeed (5 Gbps); 15 W power delivery: 1
• USB 2.0 Type-A: 1
• USB 3.2 Gen 1 Type-A (1 × front and 1 × back are switched to an active input): 3
• USB 3.2 Gen 1 Type-B: 4

Outputs:

• HDMI 2.1 with HDCP 1.4 and HDCP 2.3 Support: 1
• Stereo 3.5 mm (variable): 1
• S/PDIF optical (fixed): 1
• RJ45 (Lan Out): 1

Energy Star: Yes
