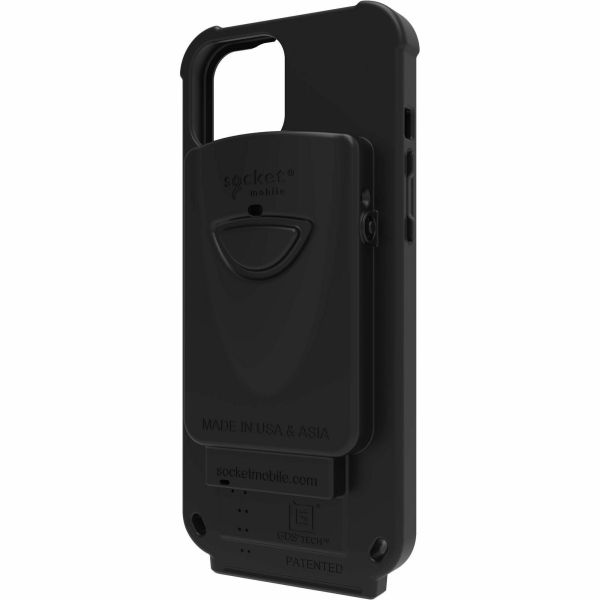

Socket Mobile DuraSled DS840 Barcode Scanner

Marketing Information

Universal Barcode Scanning Sled

The DuraSled DS840 is a universal barcode scanning sled for 1D/2D barcodes, with Bluetooth wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its rugged case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.

This makes it easy for workers to mix and match DuraSled solutions for iPhones, all while using the same accessories and application. The core components do...n't change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.

The Capture SDK enables easy integration into native, and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.

Specifications
Manufacturer: Socket Mobile, Inc
Manufacturer Part Number: CX4220-3302
Manufacturer Website Address: http://www.socketmobile.com
Brand Name: Socket Mobile
Product Line: DuraSled
Product Model: DS840
Product Name: DuraSled DS840 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanning Distance: 495.30 mm
Features:

• Notification LED
• Scan Button
• Vibration

Field of View (Horizontal): 42°
Field of View (Vertical): 28°
Maximum Ambient Light: 100000 lux
Drop Specification:

• Multiple drops to vinyl covered concrete at about 3 ft or 1 m

Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.51 mm
Minimum Element Resolution (PDF417): 0.17 mm
Maximum Element Resolution (PDF417): 0.25 mm
Image Sensor Resolution: 640 x 400
Illumination Type: LED
Network & Communication
Bluetooth: Yes
Battery Information
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 700 mAh
Battery Weight: 12.5 g
Maximum Battery Run Time: 25 Hour
Maximum Battery Recharge Time: 8 Hour
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Product Material: Acrylonitrile Butadiene Styrene (ABS)/Rubber
Durability: Drop Resistant
Height: 71.6 mm
Width: 7.8 mm
Length: 147.6 mm
Weight (Approximate): 113.5 g
Miscellaneous
Compatibility:

• Apple iPhone 15

Ingress Protection (IP) Rating: IP40
Application/Usage:

• Transportation
• Logistics
• Manufacturing
• Inventory
• Retail
• Warehouse
• Healthcare
• Hospitality

Platform Supported: iOS
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 1 Year
