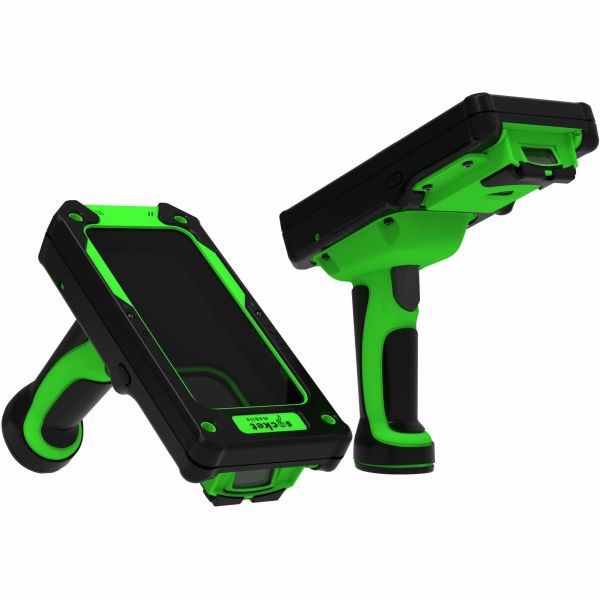

Socket Mobile XtremeScan Grip XG940 1D/2D Universal Barcode Scanner

Marketing Information

Our most rugged, ergonomic barcode scanner built for the harshest industrial environments. The XG940 combines a military grade iPhone case, a durable barcode scanner, and a pistol grip handle into an easy "point & shoot" industrial-grade solution. The integration of the scanner with a heavy-duty case is designed to withstand demanding industrial environments, and the pistol grip handle provides an extra level of comfort and convenience for constant scanning during long shifts. The XtremeScan case provides IP67 sealed housing for protection from dust, water exposure and water immersion. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.

With a compatible iPhone, the XtremeSc...an Grip XG940 1D/2D Universal barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XG940 features fast 1D/2D, omni-directional scanning for printed or on-screen barcodes with a highly visible and safe LED aimer. Depending on the barcode symbology, width, size, and label media, the XG940 can scan from 1.5 inches to 19.5 inches (3.8 to 49.5 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.

Specifications
Manufacturer: Socket Mobile, Inc
Manufacturer Part Number: CX4184-3251
Manufacturer Website Address: http://www.socketmobile.com
Brand Name: Socket Mobile
Product Line: XtremeScan Grip
Product Model: XG940
Product Name: XtremeScan Grip XG940 1D/2D Universal Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanning Distance: 495.30 mm
Features:

• Notification LED
• Scan Button
• Ergonomic Design

Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 86000 lux
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 960
Network & Communication
Bluetooth: Yes
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 700 mAh
Battery Weight: 12.5 g
Maximum Battery Run Time: 25 Hour
Maximum Battery Recharge Time: 8 Hour
Environmental Conditions
Operating Temperature: 0°C to 45°C
Storage Temperature: -5°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Product Material: Rubber
Durability:

• Water Resistant
• Dust Resistant
• Drop Resistant

Miscellaneous
Compatibility:

Apple:

• iPhone 15, 14 & 14 Pro
• iPhone 13 & 13 Pro and
• iPhone 12 & 12 Pro

Ingress Protection (IP) Rating: IP67
Application/Usage:

• Warehouse
• Inventory
• Asset Tracking
• Commercial Service
• Component Tracking
• Manufacturing
• Transportation
• Industrial

Platform Supported:

• iOS
• PC
• Android
