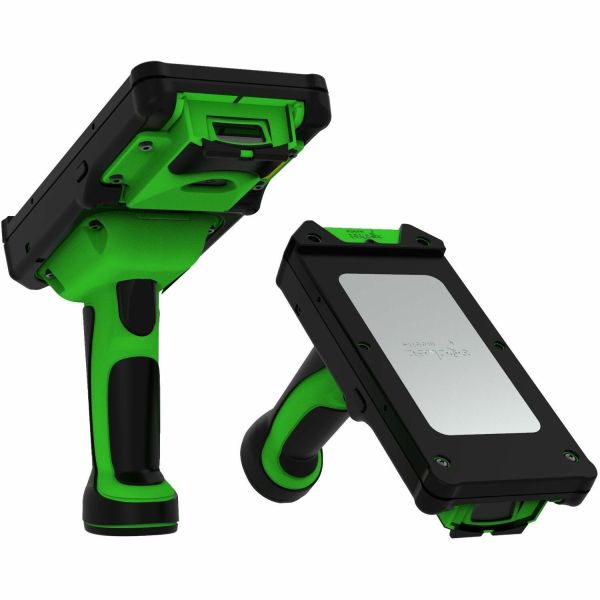

Socket Mobile XtremeScan XG640 Barcode Scanner

Marketing Information

The XtremeScan Mag XG640 delivers exceptional scanning performance. It is designed for BYOD (Bring Your Own Device) operations and easily integrates with any mobile device, providing the optimal solution to enhance efficiency and convenience in mobile workforces. Featuring a secure magnetic attachment system, workers can easily attach and detach their personal mobile devices to the scanner throughout the workday. This versatility empowers users to utilize their smartphones for tasks such as navigation, photos, and communication while adding high-performance barcode scanning when needed. The XG640's innovative BYOD design and rugged durability make it ideal for modern delivery operations, ensuring that tasks are handled efficiently without ...the need for multiple devices.

Featuring a comfortable pistol grip handle and fast, omnidirectional 1D/2D barcode scanning, the XG640 provides a convenient "point and shoot" approach for effortless data capture during work shifts. It boasts extended battery life for continuous operation, military-grade durability to withstand drops and harsh conditions, and a user-friendly interface with intuitive LED indicators and a multi-function trigger button to simplify scanning tasks.

With Bluetooth connectivity and a strong metal plate attachment system, the XG640 ensures optimal compatibility with any chosen mobile device and ensures reliable integration with iOS and Android business applications.

Specifications
Manufacturer: Socket Mobile, Inc
Manufacturer Part Number: CX4274-3386
Manufacturer Website Address: http://www.socketmobile.com
Brand Name: Socket Mobile
Product Line: XtremeScan
Product Model: XG640
Product Name: XtremeScan XG640 Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO

2D:

• Aztec, Data Matrix, DotCode, GS1 Data Matrix, GS1 QR Code, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code

Postal Codes:

• Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail

OCR Typeface:

• OCR-A, OCR-B, MICR (E13B), US currency serial number

Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Scanning Distance: 495.30 mm
Features:

• Notification LED
• Scan Button

Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 86000 lux
Drop Specification:

Standard:

• 10 ft. (3.1m) drop at room temperature per MIL-STD-810G
• 8 ft. (2.4m) drop to concrete across temperature per MIL-STD-810G

Freezer:

• 7 ft. (2.1m) drop to concrete across temperature per MIL-STD-810G.

Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 0.13 mm
Minimum Element Resolution (DataMatrix): 0.25 mm
Minimum Element Resolution (PDF417): 0.17 mm
Image Sensor Resolution: 1280 x 960
Network & Communication
Bluetooth: Yes
Battery Information
Battery Included: Yes
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 700 mAh
Battery Weight: 12.5 g
Maximum Battery Run Time: 25 Hour
Maximum Battery Recharge Time: 8 Hour
Environmental Conditions
Operating Temperature: 0°C to 45°C
Storage Temperature: -5°C to 70°C
Humidity (Non-condensing): 95%
Physical Characteristics
Form Factor: Handheld
Rugged: Yes
Durability:

• Dust Resistant
• Water Resistant

Miscellaneous
Package Contents:

• 1 x XtremeScan XG640 Barcode Scanner
• 1 x Magnetic Universal Adapter
• 1 x Charging Cable
• 1 x Get Started insert

Ingress Protection (IP) Rating: IP67
Application/Usage:

• Warehouse
• Inventory
• Asset Tracking
• Commercial Service
• Manufacturing
• Transportation
• Logistics

Platform Supported:

• PC
• Linux
• iOS
• Android
• Mac

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 1 Year
