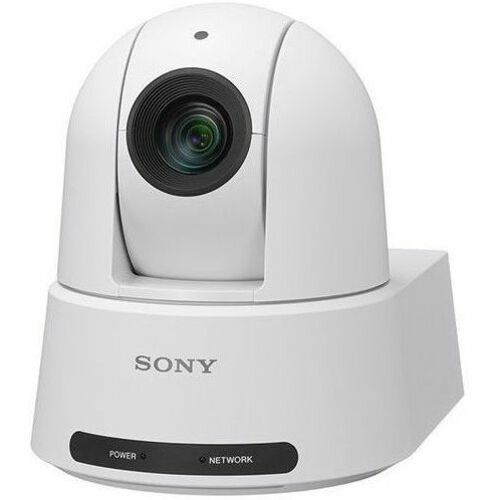

Sony Pro SRGA12 Network Camera

Marketing Information

A Camera that Automatically and Naturally Shoots Video for you

With the advanced PTZ Auto Framing feature, the camera automatically tracks the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement, regardless of posture, movement and what one is wearing.

Since the camera does most of the work automatically, the operator can spend their time efficiently.

PTZ Auto Framing with built-in AI analytics

This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera's pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator ...to manually follow their movements.

Automatically and reliably shoots video for you

With Sony's newly developed AI analytics algorithm, it detects and tracks the subject, even when there are several people in the frame.

Choice of three shooting modes

The camera has a choice of three shooting modes; Full body, Waist, and Close-up. In each mode, you can select the center, left, or right angle of view, and the SRG-A40 and SRG-A12 can automatically track the subject in the selected optimal position.

Integrated tally lamp

The SRG-A40 and SRG-A12 feature a built-in tally lamp, just like you'd find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp color will change from Red (On Air) to Green (PTZ Auto Framing ON).

Specifications
Manufacturer: Sony Corporation
Manufacturer Part Number: SRG-A12WC
Manufacturer Website Address: http://www.sony.co.uk
Brand Name: Sony Pro
Product Series: SRG
Product Model: SRGA12
Product Name: SRGA12 Network Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Camera Iris:

• Auto
• Manual

Infrared (IR) Cut-off Filter: Yes
Languages Support:

• Japanese
• English
• French
• Spanish
• German
• Italian
• Chinese
• Traditional Chinese
• Korean
• Portuguese
• Russian
• Polish
• Turkish
• Hindi

Display & Graphics
Image Sensor Type: Exmor R CMOS
Image Sensor Size: 1/2.5"
Colour Supported: Colour
Field of View: Approx. 70.0 degree (Wide)
Effective Camera Resolution: 8.5 Megapixel
Video
Video Formats:

• H.265
• H.265M
• H.264
• H.264 (MP)
• H.264 BP
• H.264 HP

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 60 fps
Horizontal Resolution: 1700 TVL
Analog Video Signal Format: 3G-SDI
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.40 mm
Maximum Focal Length: 52.80 mm
Lens Included: Yes
Minimum Aperture: f/3.7
Maximum Aperture: f/2.0
Optical Zoom: 12x
Exposure
Shortest Shutter Speed: 1/10000 Second
Longest Shutter Speed: 1/1 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6
• TCP
• UDP
• ARP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTP/RTCP
• RTSP
• VISCA over IP

Remote Management: Yes
Interfaces/Ports
HDMI: Yes
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 80 W
Input Voltage: 19.5 V DC
Power Source Type:

• DC
• PoE

Physical Characteristics
Mount Type: Ceiling Mount
Height: 184 mm
Width: 156.7 mm
Depth: 200 mm
Weight (Approximate): 2 kg
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 60°C
Miscellaneous
Features:

• Day/Night
• Microphone In
• Built-in OSD Function
• PTZ
• Built-in Mechanical ICR
• Automatic White Balance

Package Contents:

• SRGA12 Network Camera
• 1 x AC power adaptor
• 1 x IR Remote Commander Unit
• 2 x Ceiling bracket
• 1 x Wire rope
• 9 x Screw M3 x8
• 1 x Screw M2.6 x6 BLACK
• 1 x HDMI cable fixing plate
• 1 x Safety regulation
• 1 x Download site information
• 1 x Warranty
