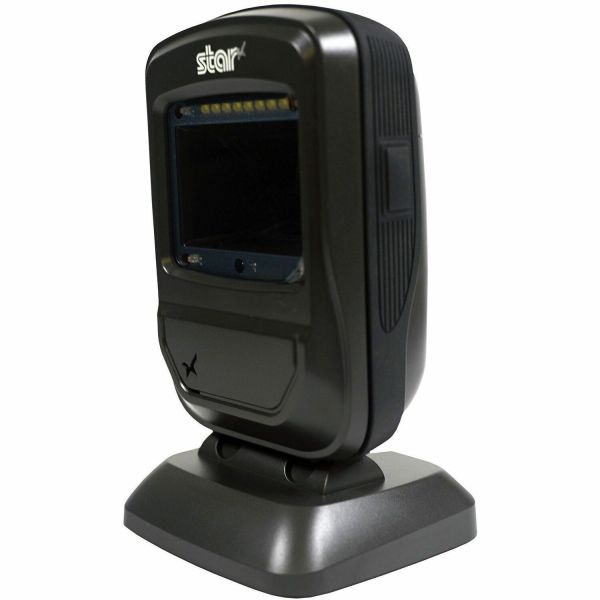

Star Micronics BSD-40U Desktop 1D/2D Barcode Scanner

Marketing Information

Premium USB Desktop Barcode Scanner

The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner's advanced technology extends to reading and parsing data from IDs and driver's licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. With an IP52-rated construction, the BSD-40U is built for durability and comes with a 2-year warranty with options to extend. Sleek and versatile, it's compatible with iOS, Android, and Window...s platforms and plugs directly into any of Star'smCollection®products, making it a perfect fit for any business seeking reliable POS hardware solutions.

Specifications
Manufacturer: Star Micronics, Inc
Manufacturer Part Number: 37950900
Manufacturer Website Address: http://www.starmicronics.com
Brand Name: Star Micronics
Product Model: BSD-40U
Product Name: BSD-40U Desktop 1D/2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Scanning Distance: 220 mm
Field of View (Horizontal): 51°
Field of View (Vertical): 32°
Reading Angle (Skew): 45°
Reading Angle (Pitch): 50°
Reading Angle (Roll): 360°
Motion Tolerance: 2500 mm/s
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 0.13 mm
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 14kV
Contact Electrostatic Discharge (+/-): 8kV
Interfaces/Ports
Host Interface:

• USB
• Serial

Environmental Conditions
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Desktop
Color Family: Black
Product Color: Black
Durability: Dust Resistant
Height: 147 mm
Width: 80 mm
Length: 82 mm
Weight (Approximate): 297 g
Miscellaneous
Compatibility:

Star Micronics:

• mPOP Receipt Printer
• mC-Print2/3 Credit Card Receipt Printer
• POS Software

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Hospitality
• Healthcare

Platform Supported:

• iOS
• Android
