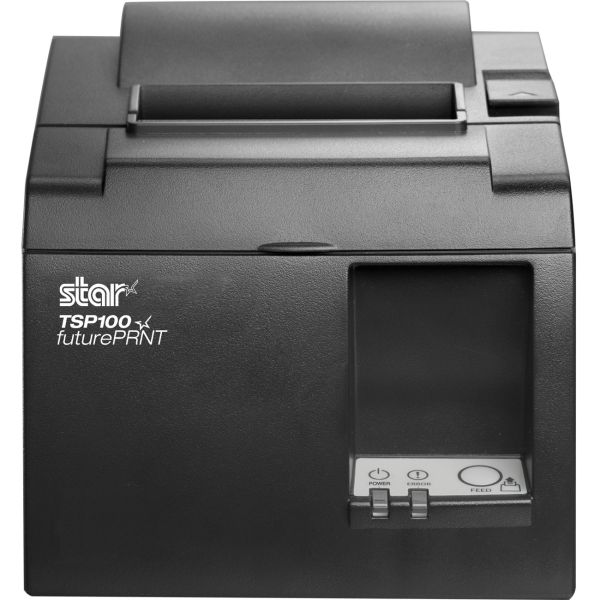

Star Micronics TSP143IIU+ USB Receipt Printer

Marketing Information

Star's successful TSP100 range is known worldwide for its reliable, high quality printing. With the new TSP143IIU+ we've introduced for an affordable, easy-to-use USB model for the EMEA region with faster print speed and all the necessary features for modern EPOS. The TSP143IIU+ is incredibly simple to set up, comes with built in power supply and includes everything you need for set-up in the box: power cable, interface cable and wall mount kit.

With 200mm/second print speed, futurePRNT software and paper-saving features included, the TSP143IIU+ is also Energy Star certified - an economical choice for any retail or hospitality environment.

FuturePRNT Software

Star's futurePRNT free-of-charge, va...lue added software included with the TSP100 Series far exceeds installation tools normally provided, enabling users to install high volume, custom set-ups. Software tools include Receipt Re-Design Tool, Auto-Text Reversal™, Coupon Marketing Tool, Journal and Multi-Copy Tool and also free of charge access to Star Cloud Services including Star's Digital Receipt Service.

The unique TSP100 set-up utility reduces integration time to minutes even for multiple printers as it can simply mirror individual printer settings to multiple units in different locations, if required.

Specifications
Manufacturer: Star Micronics, Inc
Manufacturer Part Number: 39472740
Manufacturer Website Address: http://www.starmicronics.com
Brand Name: Star Micronics
Product Series: TSP100
Product Model: TSP143IIU+ GRY UK
Product Name: TSP143IIU+ USB Receipt Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 200 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 72 mm (2.83")
Application/Usage: Desktop
Features: Auto-cutter
Power Consumption: 1.60 A
Print Technology: Direct Thermal
Interfaces/Ports
USB Host: Yes
USB: Yes
Cutter
Cutter: Yes
Cutting Method: Automatic
Cutter Type: Guillotine
Cut Type: Partial Cut
Cutter Life: 2000000 Cuts
Media Types & Handling
Media Type: Receipt
Media Sensor:

• Paper End Sensor
• Cover Open Sensor

Maximum Label Width: 80 mm
Fonts & Emulation
Language Emulation:

• ePOS
• ESC/POS

Power Description
Power Source: Power Adapter
Input Voltage: 24 V DC
Physical Characteristics
Color Family: Grey
Product Color: Grey
Height: 132 mm
Width: 142 mm
Depth: 204 mm
Weight (Approximate): 1.76 kg
Miscellaneous
Power Cable Localization: UK
Platform Supported: PC
Energy Star: Yes
