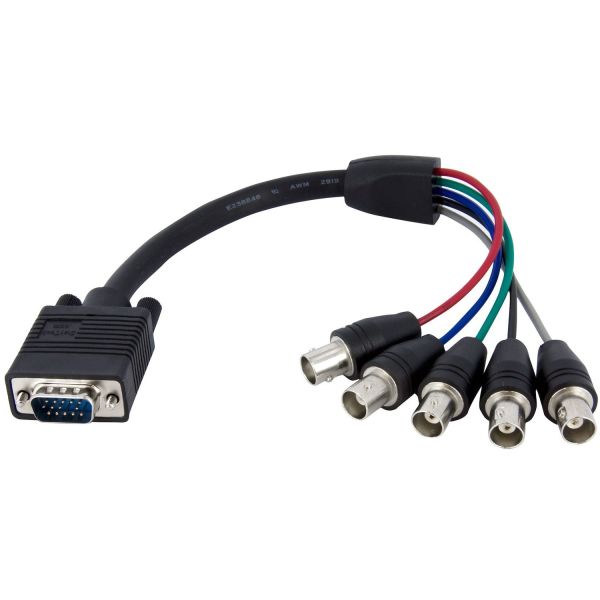

StarTech.com 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable

Marketing Information

The VGABNCMF1 1-foot Coax HD15 VGA to 5 BNC RGBHV Adapter Cable features an HD15 VGA (male) connector and 5 BNC (RGBHV) (female) connectors, allowing you to connect your existing BNC video source to a VGA distribution amplifier or PC.
The cable can also be used with a VGA out signal, breaking out to 5 BNC female connectors that can be used with a 5 BNC (M-M) cable for use with a BNC monitor/display.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: VGABNCMF1
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: VGABNCMF1
Product Name: 1 ft Coax HD15 VGA to 5 BNC RGBHV Monitor Cable
Packaged Quantity: 1 Each
Packing: Bagged
Product Type: Video Cable
Technical Information
Cable Type: Coaxial
Cable Length: 30.48 cm
Connector Type on First End: HD-15 - Male
Connector on First End Details: 1 x 15-pin HD-15 - Male
Connector Type on Second End: BNC Video - Female
Connector on Second End Details: 5 x BNC Video - Female
Connector Plating: Nickel
Conductor: Copper
Device Supported:

• PC
• Distribution Amplifier
• Monitor
• Video Device
• Projector

American Wire Gauge: 28 AWG
Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 102.1 g
Shipping Height: 17.02 mm
Shipping Width: 124.97 mm
Miscellaneous
Certifications & Standards:

CMG Rated
