StarTech.com 2.5Gigabit Ethernet Adapter

Marketing Information

This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Acces...s up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.

Enhance Existing Hardware

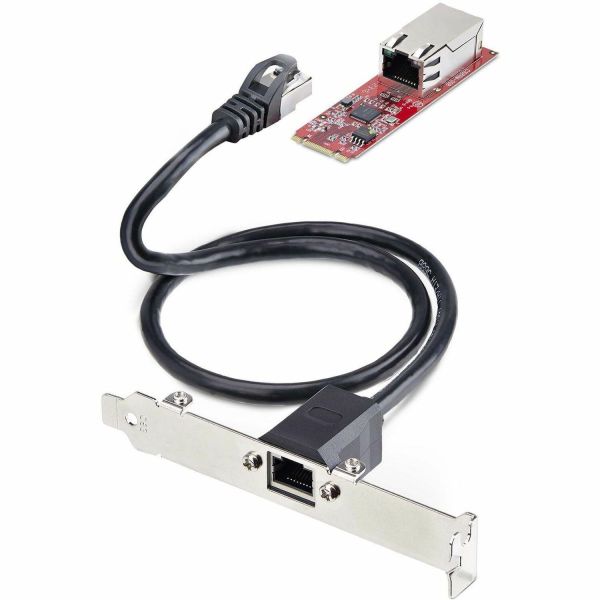

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.

Advanced Features

This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MR12GINETWORKCARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2.5Gigabit Ethernet Adapter
Packaged Quantity: 1
Product Type: 2.5Gigabit Ethernet Adapter
Technical Information
Chipset Manufacturer: Intel
Chipset Model: I225-V
Interfaces/Ports
Host Interface: M.2
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported: Twisted Pair
Maximum Data Transfer Rate: 2.50 Gbit/s
Network & Communication
Network Technology: 2.5GBase-T
Physical Characteristics
Color Family: Red
Product Color: Red
Form Factor: Plug-in Card
Bracket Height: Full-Profile/Low-Profile
Height: 15.2 mm
Width: 78.7 mm
Weight (Approximate): 14.2 g
Miscellaneous
Package Contents:

• 2.5Gigabit Ethernet Adapter
• 1 x CAT6 Cable Adapter
• 1 x Full-Profile Bracket
• 1 x Low-Profile Bracket
• 1 x M3x2 Screw
• 1 x QuickxStart Guide

Application/Usage: Network
Device Supported: Desktop Computer
Operating System Compatibility:

• Linux
• Windows Server 2019
• Windows 11
• Windows 10

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
