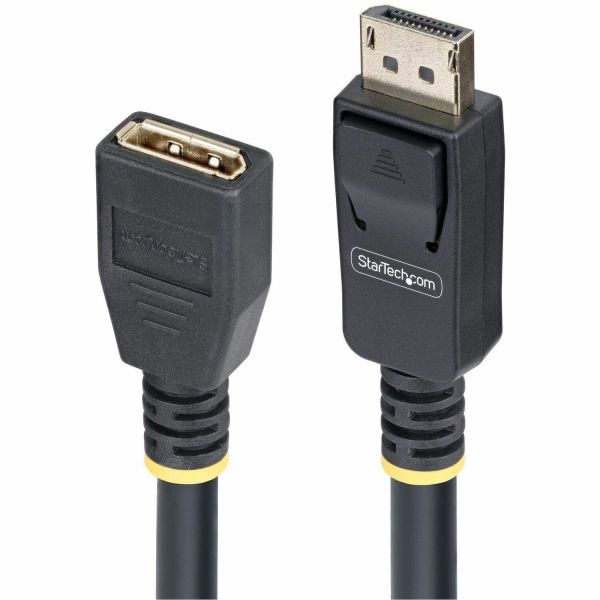

StarTech.com DisplayPort Extension Audio/Video Cable

Marketing Information

This high quality DisplayPort 1.4 Extension Cable provides extra reach for greater setup versatility, and reduces wear and tear of the DP port on your monitor or other devices. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DisplayPort cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.4 performance.

This male-to-female DisplayPort extension cable supports all DisplayPort 1.4 features:

• Resolutions up to 8K 60Hz or 4K 144Hz

• High speeds with a bandwidth of up to 32.4Gbps

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors

• High Dynamic Range (HDR) for higher contrast ratio and vivid colors

• Crystal-clear sound with up to 32 digital audio channels

This DisplayPort extension cable is backwards compatible with earlier versions of DisplayPort, ensuring seamless integration with existing DisplayPort devices.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 10F-DP14-EXTEND-CBL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort Extension Audio/Video Cable
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Characteristic: Extension Cable
Cable Length: 3 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Female
Connector Gender on Second End: Female
Connector on Second End Details: 1 x DisplayPort 1.4 Digital Audio/Video - feMale
Connector Plating: Gold
Shielding: Yes
Jacket Type: VW-1
Device Supported:

• Monitor
• Audio/Video Device
• Workstation
• Digital Signage
• Projector

American Wire Gauge: 30 AWG
Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Passive
• Multi-Stream Transport (MST) Support
• Wear Resistant
• Tear Resistant
• High Bit Rate 2 (HBR2)
• Halogen-free

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Copper
• Santoprene

Shielding Material:

• Braided Foil
• Aluminum Mylar

Jacket Material: Thermoplastic Elastomer (TPE)
Material Details:

Copper Cable

Height: 12.7 mm
Width: 22.9 mm
Weight (Approximate): 241 g
Warranty
Limited Warranty: Lifetime
