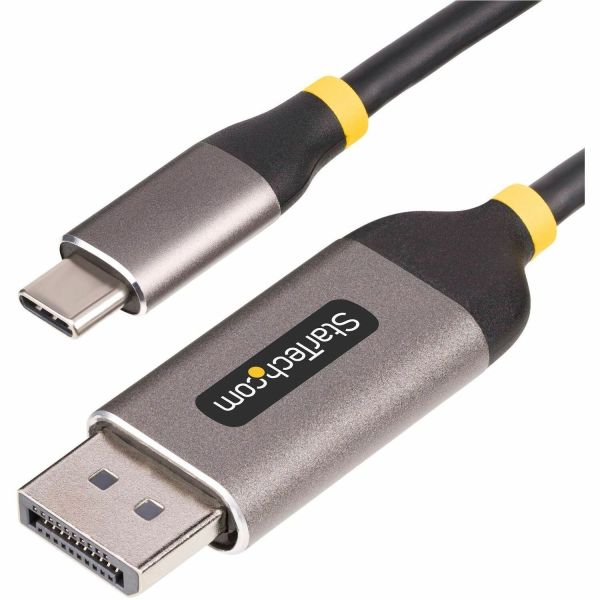

StarTech.com DisplayPort/USB-C Audio/Video Cable

Marketing Information

Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.

High-Resolution HDR Video

This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.

Hardware Platform

Single Monitor

DisplayPort Alt Mode

Intel 11th Gen & Later Processors

8K 60Hz or 4K 144Hz

DisplayPort 1.4

Nvidia RTX3000 and AMD RX6000 or later

8K 60Hz or 4K 144Hz DisplayPort 1.4

Intel 10th Gen & Earlier

4K 60Hz

DisplayPort 1.4

Apple M1/M2/M3 + Pro & Max

4K 60Hz

DisplayPort 1.4

Universal Compatibility

The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.

Thoughtfully Designed

Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 142-USBC-DP-8K-10F
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort/USB-C Audio/Video Cable
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/USB-C
Cable Length: 3.05 m
Connector Type on First End: USB Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x USB Type C - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: Displayport 1.4 Digital Audio/Video - Male
Shielding: Yes
Device Supported:

• Monitor
• Notebook
• MacBook Pro
• Audio/Video Device

Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• HDR10 Support
• Display Stream Compression (DSC)
• Durable
• EMI Protection
• Active
• Latching Connector
• High Bit Rate 3 (HBR3)
• HDCP 1.4
• HDCP 2.3

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Grey

Connector Material: Aluminium
Jacket Material: Thermoplastic Elastomer (TPE)
Material Details:

Aluminum Shell

Weight (Approximate): 110.6 g
Miscellaneous
Compatibility:

Apple M1/M2/M3, MacBook Pro
