StarTech.com Serial/USB Data Transfer Cable

Marketing Information

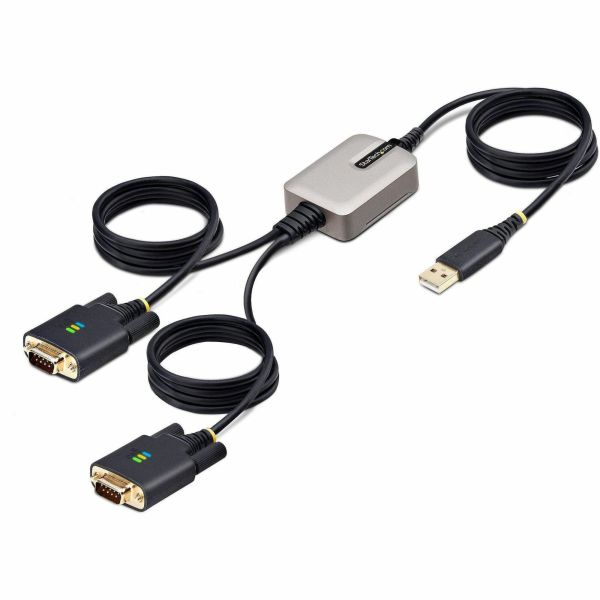

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 13ft (4m) straight through 2-Port USB to Serial Adapter Cable.

Serial Port Expansion

The Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

LED Indicators

Data transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates w...hen the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 2P6FFCUSBSERIAL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Serial/USB Data Transfer Cable
Packaged Quantity: 1
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial/USB
Cable Length: 3.96 m
Connector Type on First End: USB 2.0 Type A - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 4-pin USB 2.0 Type A - Male
Connector Type on Second End: DB-9 RS-232 - Male
Connector Gender on Second End: Male
Connector on Second End Details: 2 x 9-Pin DB-9 RS-232 - Male
Connector Plating: Gold
Shielding: Yes
Device Supported:

• Desktop Computer
• Notebook
• Peripheral Device
• Monitor
• Sensor
• Barcode Scanner
• Receipt Printer
• POS Device
• LED
• Digital Signage
• Computer

Data Transfer Rate: 480 Mbit/s
Features:

• ESD Protection
• LED Indicator
• Molded
• EMI/RF Protection
• Rugged

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Thermoplastic Elastomer (TPE)
Shielding Material: Copper
Material Details:

Thermoplastic Elastomer (TPE) - Housing

Weight (Approximate): 280.7 g
