StarTech.com 15m Active HDMI Cable

Marketing Information

Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.

HDMI UHD Over Long Distances

The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.

Full-Featured HDMI 2.0

The Active HDMI UHD Cable supports full HDMI 2.0... specifications:

• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz)
• High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Audio Return Channel (ARC) for 7.1 and 32-channel audio
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities
• Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing

Plenum-Rated Cabling

This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

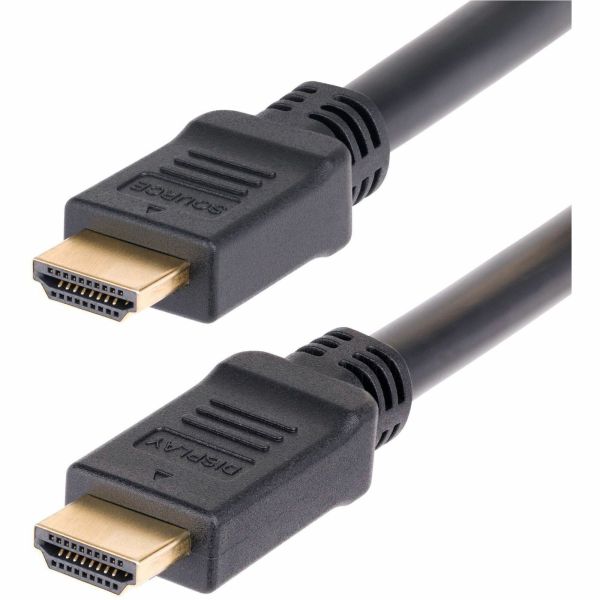

Note: This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: HD2AP-15M-HDMI-CABLE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 15m Active HDMI Cable
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: HDMI
Cable Length: 15 m
Connector Type on First End: HDMI 2.0 Digital Audio/Video
Connector Gender on First End: Male
Connector on First End Details: 1 x HDMI 2.0 Digital Audio/Video - Male
Connector Type on Second End: HDMI 2.0 Digital Audio/Video
Connector Gender on Second End: Male
Connector on Second End Details: 1 x HDMI 2.0 Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Jacket Type:

• CMP
• Plenum

Device Supported:

• Monitor
• Projector
• Display
• Video Wall
• Audio/Video Device

American Wire Gauge: 24/28 AWG
Data Transfer Rate: 18 Gbit/s
Supported Resolution: 3840 x 2160
Features:

• Active
• Braided
• HDR10 Support
• Dynamic HDR Support
• Audio Return Channel (ARC)
• Strain Relief
• HDCP 2.2
• Damage Resistant
• Variable Refresh Rate (VRR)
• Dual Video Stream

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Copper
Shielding Material: Aluminum Mylar Foil
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

Cable - Copper

Warranty
Limited Warranty: Lifetime
