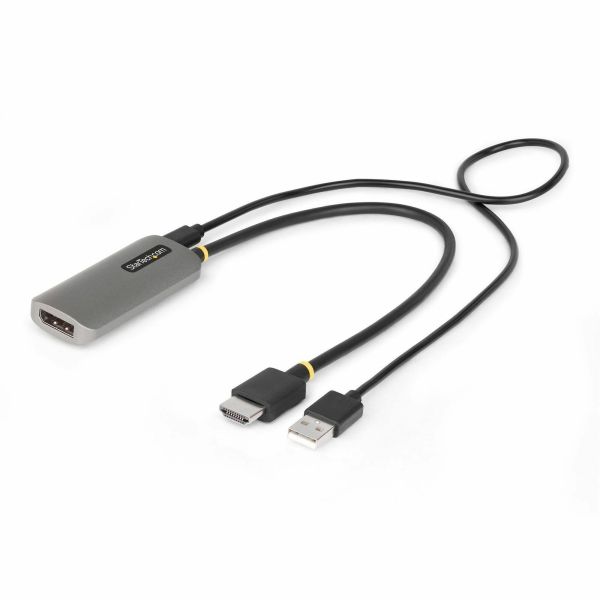

StarTech.com DisplayPort/HDMI/Micro-USB Audio/Video Cable

Marketing Information

Connect an HDMI-enabled source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

This HDMI 2.1 to DisplayPort 1.4 adapter connects an 8K 60Hz HDMI video source, such as a laptop or desktop, to a DisplayPort monitor.

8K 60Hz Resolution

This 1ft (30cm) HDMI to DisplayPort video converter supports resolutions up to 7680 x 4320 at 60Hz. It supports HDR, HDCP 2.3, CEC, ARC, and 2-channel DisplayPort audio. Additionally, it supports lower resolutions such as 4K 120Hz, 4K 60Hz, and 1080p.

DSC support on the host is required to achieve maximum video performance.

No Drivers or Software Required

This universal active adapter utilizes integrated or dedicated GPUs, enabling high-...performance video with minimal CPU usage. It requires no drivers or software and works with any HDMI-enabled laptop, desktop, Ultrabook, MacBook, or Chromebook. It is compatible with any operating system, including Windows, macOS, Ubuntu, and ChromeOS.

Extended Cables

This HDMI to DP adapter features a 1ft (30cm) cable between the HDMI and DP connectors, reducing strain on ports and connectors. The adapter includes a 1.6-foot (50cm) USB power cable for connecting to a powered USB port anywhere on the laptop or to a USB wall charger. Power is required for the adapter to function.

The StarTech.com Advantage

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 148B-HDMI-DP-8K
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort/HDMI/Micro-USB Audio/Video Cable
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/HDMI/Micro-USB
Cable Length: 29.97 cm
Connector Type on First End:

• HDMI 2.1 Digital Audio/Video - Male
• Micro USB Type B - Male

Connector Gender on First End: Male
Connector on First End Details:

• 1 x HDMI 2.1 Digital Audio/Video - Male
• 1 x 5 pin Micro USB Type B - Male

Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x DispalyPort 1.4 Digital Audio/Video - Male
Device Supported:

• Audio/Video Device
• Notebook
• Desktop PC
• Monitor
• Ultrabook
• MacBook
• Chromebook
• Wall Charger
• Computer
• Tablet

Supported Resolution: 7680 x 4320
Features:

• Active
• Display Stream Compression (DSC)
• HDR Support
• HDCP 2.3
• Consumer Electronics Control (CEC)
• Audio Return Channel (ARC)
• Strain Resistant
• HDCP 1.4
• HDCP 2.2
• Display Stream Compression (DSC) 1.2a

Physical Characteristics
Color Family: Grey
Product Color: Space Gray
Weight (Approximate): 31.2 g
Miscellaneous
Compatibility:

Apple Macbook
