StarTech.com USB to Serial Adapter

Marketing Information

Add RS-232 DCE serial communications support to a desktop or laptop computer and resolve DCE/DTE conflicts directly without the need for additional cross-wired serial cables or adapters.

Serial Port Expansion

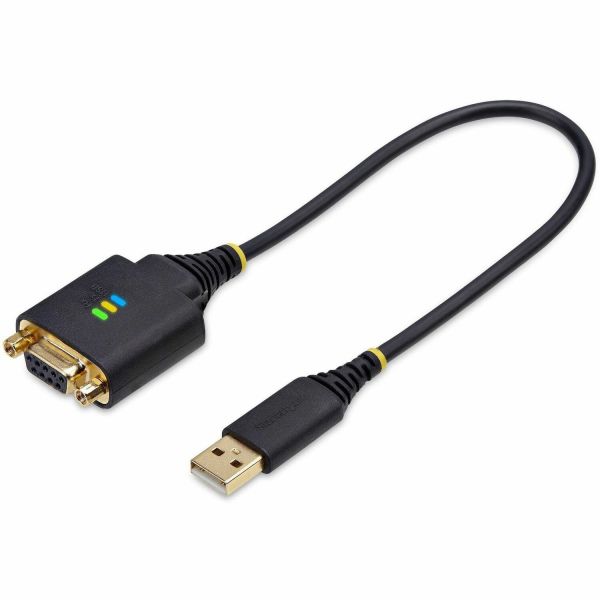

The 1-foot (30-centimeter) Null Modem USB Serial Adapter adds an RS-232 serial DB/DE-9 (female) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable DB-9 nuts, or install the included slotted D-Sub thumbscrews for compatibility with other serial peripheral devices or cables.

LED Indicators

Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The US...B LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 1P1FFCN-USB-SERIAL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB to Serial Adapter
Packaged Quantity: 1
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial/USB
Cable Length: 30.48 cm
Connector Type on First End: USB 2.0 Type A
Connector Gender on First End: Male
Connector on First End Details: 1 x 4 pin USB 2.0 Type A - Male
Connector Type on Second End: DB-9 RS-232 Serial
Connector Gender on Second End: Female
Connector on Second End Details: 1 x 9 pin DB-9 RS-232 Serial - Female
Connector Plating: Gold
Shielding: Yes
Device Supported:

• Desktop Computer
• Notebook
• Serial Adapter
• Peripheral Device
• Sensor
• Monitor
• Barcode Scanner
• Receipt Printer
• POS Device
• Digital Signage

Features:

• Rugged
• EMI/RF Protection
• Molded

Physical Characteristics
Color Family: Black
Product Color: Black
Shielding Material: Copper
Material Details:

Housing - TPE

Height: 15.2 mm
Width: 33 mm
Miscellaneous
Package Contents:

• USB to Serial Adapter
• 2 x DB9 Screws
• 1 x Quick-Start Guide

Operating System Compatibility:

• Windows 10
• Windows 11
• Windows 8
• Windows 7
• Mac OS
• Linux
• ChromeOS

Warranty
Limited Warranty: 2 Year
