StarTech.com 1m Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k

Marketing Information

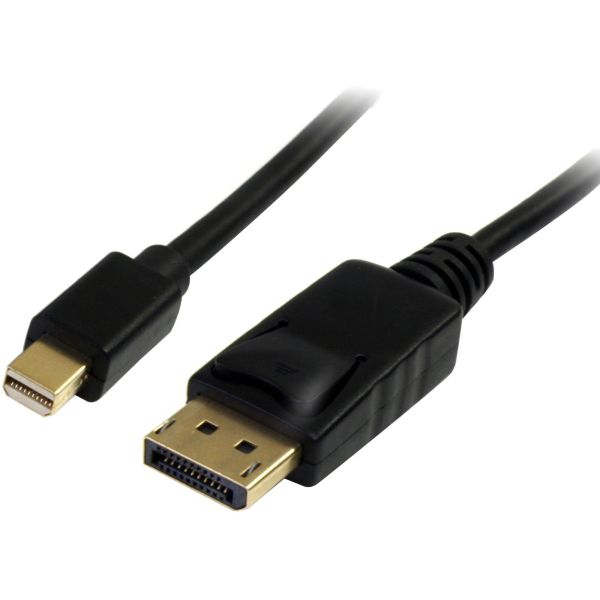

The MDP2DPMM1M 1m Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.

The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The MDP2DPMM1M is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed prop...erly, with both HDCP and DPCP capability.

Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MDP2DPMM1M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: MDP2DPMM1M
Product Name: 1m Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k
Packaged Quantity: 1
Packing: Bagged
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/Mini DisplayPort
Cable Length: 1 m
Connector Type on First End: Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:

• Nickel
• Gold

Conductor: Copper
Shielding: Yes
Jacket Type: CMG
Device Supported:

• TV
• Monitor
• Audio/Video Device
• Projector
• Notebook
• Workstation
• Display
• HDTV
• Desktop Computer

American Wire Gauge: 32 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2400
Number of Conductors: 19
Features:

• Multi-Stream Transport (MST) Support
• Flexible
• Strain Relief
• Fray Resistant
• Damage Resistant
• EMI Protection
• Latching Connector
• HDCP
• DPCP

Physical Characteristics
Product Color: Black
Connector Material:

• Acrylonitrile Butadiene Styrene (ABS)
• Metal

Shielding Material:

• Aluminum Mylar Foil
• Braided Copper

Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 43.4 g
Shipping Height: 9.91 mm
Shipping Width: 199.90 mm
Warranty
Limited Warranty: Lifetime
