StarTech.com Fiber Optic Patch Duplex Network Cable
£130.38
Limited Stock: Only 0 available
Only 1 left
StarTech.com Fiber Optic Patch Duplex Network Cable
Environment: Not yet rated
Human Rights: Not yet rated
Animal Welfare: Not yet rated
Social Integrity: Not yet rated
Durability: Not yet rated
StarTech.com Fiber Optic Patch Duplex Network Cable is available to buy in increments of 1
Categories: Connector Cables, Default Category
| Cable Length | 1 m |
|---|---|
| Cable Characteristic | Patch Cable |
| Cable Type | Fibre Optic |
| Fiber Optic Mode | Multi-mode |
| Product Type | Network Cable |
| Brand Name | StarTech.com |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Product Color | Aqua |
| Color Family | Green |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MPO8LCPL1M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Fiber Optic Patch Duplex Network Cable
Packaged Quantity: 1 Each
Product Type: Network Cable
Technical Information
Cable Type: Fibre Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Cable Length: 1 m
Connector Type on First End: MTP/MPO Network - Female
Connector on First End Details: 1 x MTP/MPO Network - Female
Connector Type on Second End: LC Network - Male
Connector on Second End Details: 8 x LC Network - Male
Jacket Type:
Device Supported:
Data Transfer Rate: 40 Gbit/s
Features:
Physical Characteristics
Color Family: Green
Product Color: Aqua
Weight (Approximate): 8.5 g
Shipping Height: 9.91 mm
Shipping Width: 199.90 mm
Warranty
Limited Warranty: Lifetime

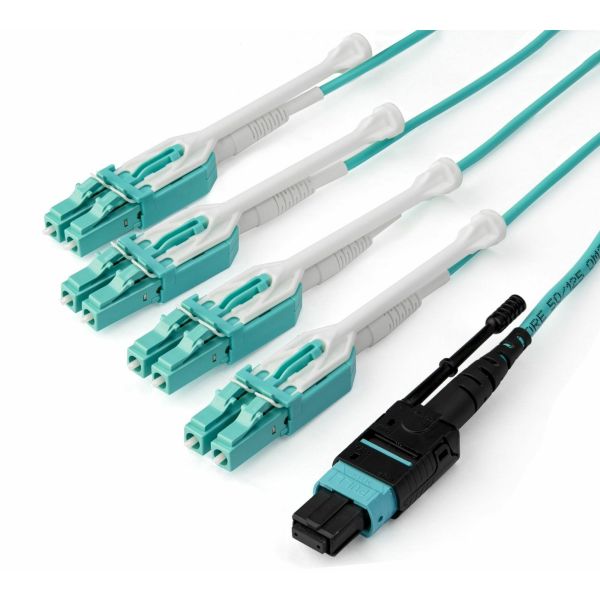

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL1M from StarTech.com is backed by a lifetime warranty.
More from the... Manufacturer
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MPO8LCPL1M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Fiber Optic Patch Duplex Network Cable
Packaged Quantity: 1 Each
Product Type: Network Cable
Technical Information
Cable Type: Fibre Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Cable Length: 1 m
Connector Type on First End: MTP/MPO Network - Female
Connector on First End Details: 1 x MTP/MPO Network - Female
Connector Type on Second End: LC Network - Male
Connector on Second End Details: 8 x LC Network - Male
Jacket Type:
- Plenum
- CMP
- OFNP
Device Supported:
- Network Device
- Patch Panel
- Hub
- Switch
- Media Converter
- Router
Data Transfer Rate: 40 Gbit/s
Features:
- Uniboot Connector
- Push-Pull Tab
Physical Characteristics
Color Family: Green
Product Color: Aqua
Weight (Approximate): 8.5 g
Shipping Height: 9.91 mm
Shipping Width: 199.90 mm
Warranty
Limited Warranty: Lifetime
