StarTech.com 1m Black Straight Through DB9 RS232 Serial Cable - M/F

Marketing Information

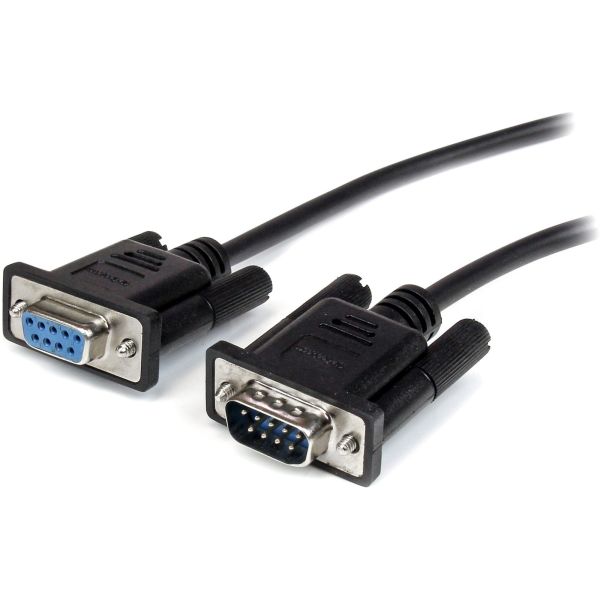

The MXT1001MBK Black Serial Extension Cable (1m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.

Note: This is a Straight-through cable, not a null-modem.

Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.

More from the Manufacturer

...o,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MXT1001MBK
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1m Black Straight Through DB9 RS232 Serial Cable - M/F
Packaged Quantity: 1 Each
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial
Cable Characteristic: Extension Cable
Cable Configuration: Straight-through
Cable Length: 1 m
Connector Type on First End: DB-9 RS-232 Serial - Male
Connector on First End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
Connector Type on Second End: DB-9 RS-232 Serial - Female
Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial - Female
Connector Plating: Nickel
Conductor: Copper
Shielding: Yes
Device Supported: Peripheral Device
American Wire Gauge: 28 AWG
Features:

• Molded
• EMI Protection
• Strain Relief
• Damage Resistant
• Bendable
• Screw Lock

Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 82.2 g
Shipping Height: 0.25 mm
Shipping Width: 124.97 mm
