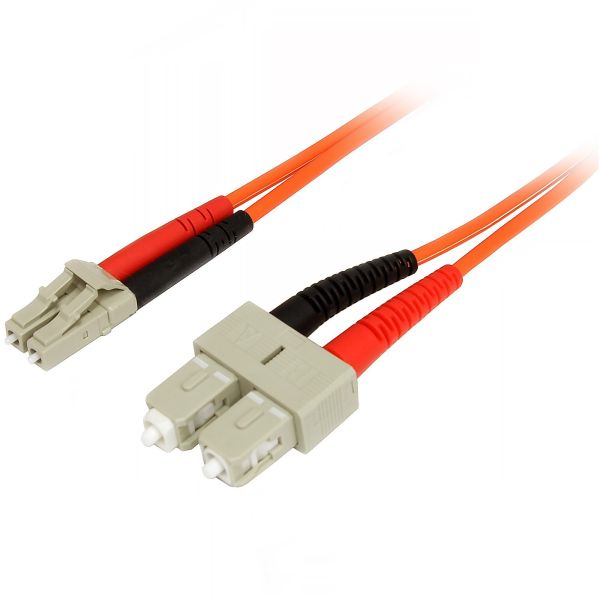

StarTech.com 1m Multimode 50/125 Duplex Fiber Patch Cable LC - SC

Marketing Information

Connect fiber network devices for high-speed transfers using this Duplex 50/125 (OM2) Multimode Fiber Patch Cable. It features 50/125 micron fiber for high-speed, high-bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks with support for duplex multimode applications. Maximum data-transfer rate is 10Gbps. This LC to SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Patch cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100 reliability.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 50FIBLCSC1
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1m Multimode 50/125 Duplex Fiber Patch Cable LC - SC
Packaged Quantity: 1 Each
Product Type: Network Cable
Technical Information
Cable Type: Fibre Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Optic Cable Core/Cladding Specification: 50/125 µm
Cable Length: 97.54 cm
Connector Type on First End: LC Network - Male
Connector on First End Details: 2 x LC Network - Male
Connector Type on Second End: SC Network - Male
Connector on Second End Details: 2 x SC Network - Male
Jacket Type: LSZH
Device Supported: Network Device
Data Transfer Rate: 10 Gbit/s
Features:

• Halogen Free
• Flame Retardant
• Corrosion Resistant

Physical Characteristics
Color Family: Orange
Product Color: Orange
Weight (Approximate): 26 g
Shipping Height: 25.91 mm
Shipping Width: 199.90 mm
Miscellaneous
Additional Information: Applications/Solutions:

• Used by long distance networks with mission critical data
• Telecommunication / Data communication
• Broadband systems
• Ideal solution for data applications requiring high speed data transmission
• Features:
• Attentuation loss meets or exceeds industry standards
• Immune to electricty interference
• Connectors offer greater durability in resisting pulls, strains, and impacts during cable installation and maintentance
