StarTech.com USB Adapter

Marketing Information

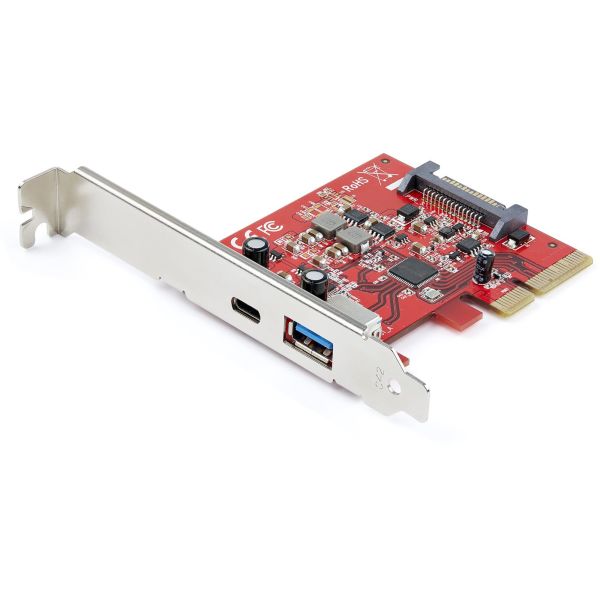

This USB 3.2 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.2 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.2 Gen 2 (also known as USB 3.1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.
Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.
By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.2 Gen 2 and rest assured you're ready for both current and future... high-bandwidth USB-A and USB-C devices.
With higher data throughput support, this USB 3.2 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.2 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.
Connecting older peripherals isn't a problem. This versatile dual-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.
The USB 3.2 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.
The card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.
In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 2 at peak performance.
At the same peak in testing, UASP also shows an 80% reduction in required processor resources.
The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB311AC3
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Adapter
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x4
Media & Performance
UASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Linux 3.5
• Mac OS X 10.13 High Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura

Physical Characteristics
Color Family: Red
Product Color: Red
Form Factor: Plug-in Card
Height: 17.8 mm
Width: 81.3 mm
Length: 119.4 mm
Weight (Approximate): 48.2 g
Miscellaneous
Package Contents:

• USB Adapter
• 1 x Low Profile Bracket
• 1 x Quick Start Guide

Platform Supported:

• PC
• Mac
• Linux

Country of Origin: Taiwan
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
