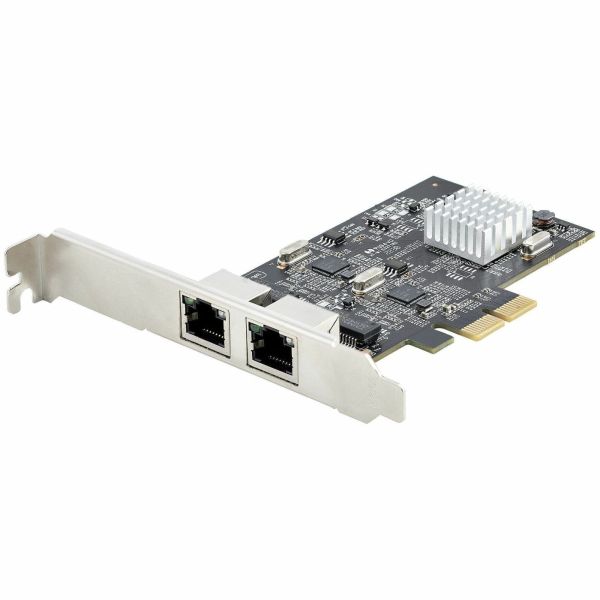

StarTech.com 2-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x2

Marketing Information

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online co...ntent - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PR22GINETWORKCARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2-Port 2.5GBase-T Ethernet Network Adapter Card - PCIe 2.0 x2
Packaged Quantity: 1
Product Type: 2.5Gigabit Ethernet Adapter
Technical Information
Chipset Manufacturer: Intel
Chipset Model: I225-V
Interfaces/Ports
Host Interface: PCI Express 2.0 x2
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 2.5GBase-T
Physical Characteristics
Form Factor: Plug-in Card
Bracket Height: Low Profile
Miscellaneous
Application/Usage: Network
Device Supported: Server
