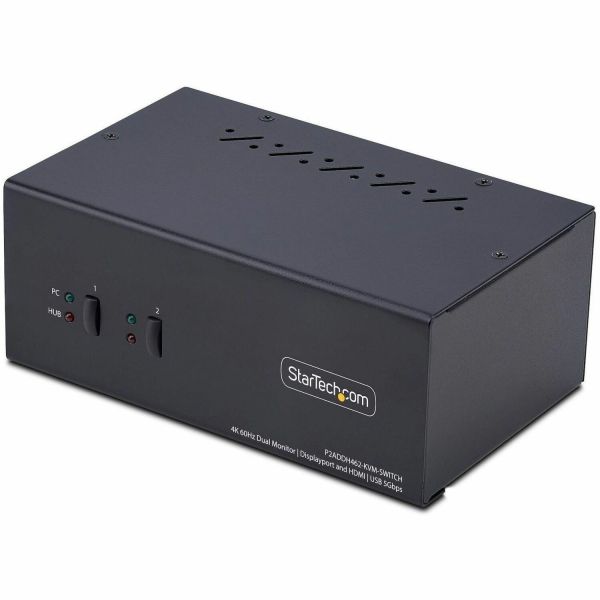

StarTech.com KVM Switchbox

Marketing Information

The HDMI and DisplayPort KVM switch enables a mixed-display setup of an HDMI and a DisplayPort monitor without the need for adapters or converters. It allows you to share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers.

HDMI + DisplayPort

Connect an HDMI and a DisplayPort monitor to this KVM switch, both supporting resolutions up to 4K 60Hz for high-definition content without the need for adapters. The HDMI port is ideal for connecting to a wide range of devices, including TVs, monitors, and projectors, while the DisplayPort port is ideal for high-performance monitors.

Easily Share USB Devices

The USB 3.0 hub provides high-speed data ...transfer over two USB 3.0 ports for devices such as external SSDs and flash drives. It also includes two dedicated USB HID ports for a keyboard and mouse.

No Drivers or Software Required

The TAA-compliant KVM switch offers BIOS/UEFI control and works with any operating system, including Windows, macOS, ChromeOS, and Linux, without requiring any software. It is compatible with all hardware platforms, such as Intel, AMD, and Apple.

The KVM switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation. LEDs offer quick visual port selection status, and you can listen to audio from one computer while controlling another.

Reliable Performance

The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in various environments, and it provides 8kV air and 6kV contact ESD protection.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: P2ADDH462-KVM-SWITCH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: KVM Switchbox
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 2
Maximum Data Transfer Rate: 640 MB/s
Features: LED Indicator
Video
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
USB: Yes
USB Standard: USB 3.0
HDMI: Yes
DisplayPort: Yes
Number of USB Ports: 6
Number of HDMI Ports: 3
Number of DisplayPorts: 3
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Power Description
Input Current: 1 A
Input Voltage Range: 100 - 240 AC
Physical Characteristics
Height: 66 mm
Width: 99.1 mm
Length: 162.56 mm
Miscellaneous
Package Contents:

• KVM Switchbox
• 1x Universal Power Adapter (NA/EU/UK/ANZ)
• 1x Quick-Start Guide

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
