StarTech.com 2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support

Marketing Information

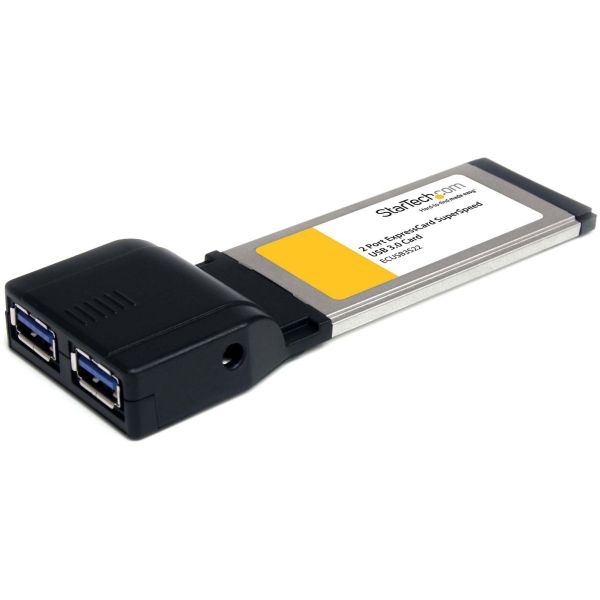

The ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time o...n data transfers. See our UASP test results below for further details.

USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

~

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ECUSB3S22
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: ExpressCard/34
Media & Performance
Data Transfer Rate: 5 GB/s
UASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Ports: 2
Software
Operating System Supported:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2003
• Windows Server 2008 R2

Power Description
Power Plug Type: Type B
Physical Characteristics
Color Family: Blue
Product Color: Blue
Form Factor: Plug-in Module
Height: 12 mm
Width: 40 mm
Length: 115 mm
Weight (Approximate): 32 g
Miscellaneous
Package Contents:

• 2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support
• 1 x USB to DC Power Cable
• 1 x Driver CD
• 1 x Instruction Manual

Platform Supported: PC
TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: Lifetime
