StarTech.com Gigabit Ethernet Card

Marketing Information

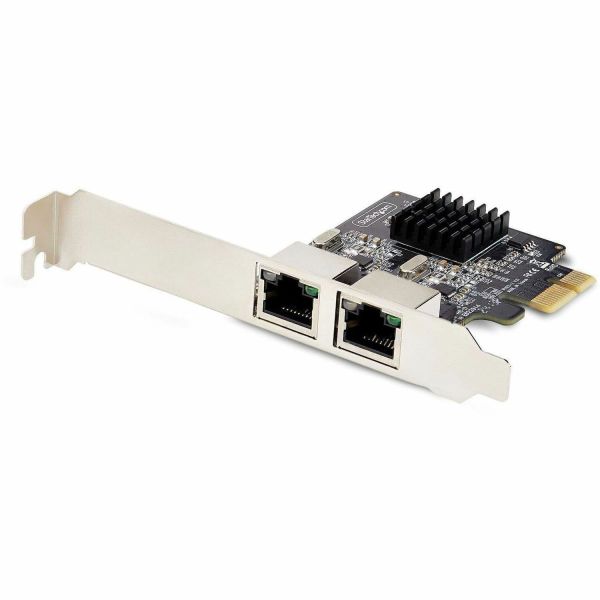

This TAA-compliant Gigabit Ethernet card adds two gigabit Ethernet interfaces to a desktop or server.

Plug And Play Compatible

This 2-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between... 10/100/1000Mbps, and VLANs for streamlined network management.

Universal Fit

The PCI Express NIC includes a pre-installed standard-profile bracket for full-sized desktops and servers, as well as a low-profile bracket for compatibility with small form-factor computers.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ST1000SPEXD4T
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Gigabit Ethernet Card
Packaged Quantity: 1
Product Type: Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Realtek
Chipset Model: RTL8111H
Features:

• VLAN Support
• Wake on LAN (WOL)
• Jumbo Frames Support

Interfaces/Ports
Host Interface: PCI Express x16
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Maximum Data Transfer Rate: 7.81 Gbit/s
Network & Communication
Network Technology: 10/100/1000Base-T
Environmental Conditions
Minimum Operating Humidity (Non-condensing): 10%
Maximum Operating Humidity (Non-condensing): 80%
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 17.8 mm
Width: 61 mm
Depth: 76.2 mm
Weight (Approximate): 48.2 g
Miscellaneous
Package Contents:

• Gigabit Ethernet Card
• 1 x Low Profile Bracket
• 1 x Quick-Start Guide

Application/Usage:

• Server
• Network

Device Supported:

• Computer
• Server
• Workstation

Operating System Compatibility:

• Windows
• Linux
• Windows 8
• Windows 10
• Windows 11
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Windows 8.1
• Linux 2.4.x

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
