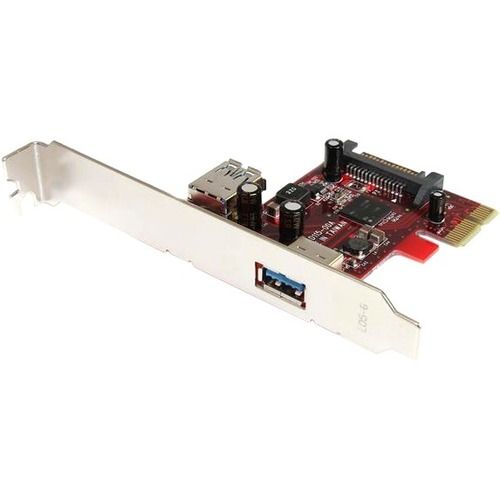

StarTech.com PCI Express USB 3.0 card

Marketing Information

The PEXUSB3S11 PCI Express USB 3.2 Gen 1 Card lets you add one internal, and one external USB 3.2 Gen 1 port to your PC through a PCI Express slot.
Featuring a native NEC PCI Express host controller chipset, the new USB 3.2 Gen 1 standard supports transfer rates of up to 5Gbps, while still providing backward compatibility with older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices. The inclusion of an internal USB 3.2 Gen 1 connection provides the added benefit of compatibility with USB 3.2 Gen 1-based internal storage solutions or front-bay hubs.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a co...mpatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
For bus-powered USB devices, this PCIe USB 3.2 Gen 1 card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 devices (500mA for USB 2.0).
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
UASP is supported in Windows 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB3S11
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: PCI Express USB 3.0 card
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x1
Media & Performance
UASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2003
• Windows Server 2008 R2

Physical Characteristics
Color Family: Red
Product Color: Red
Form Factor: Plug-in Card
Height: 20.3 mm
Width: 119.4 mm
Length: 71.1 mm
Weight (Approximate): 37 g
Miscellaneous
Package Contents:

• PCI Express USB 3.0 card
• 1 x Low Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Platform Supported: PC
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
