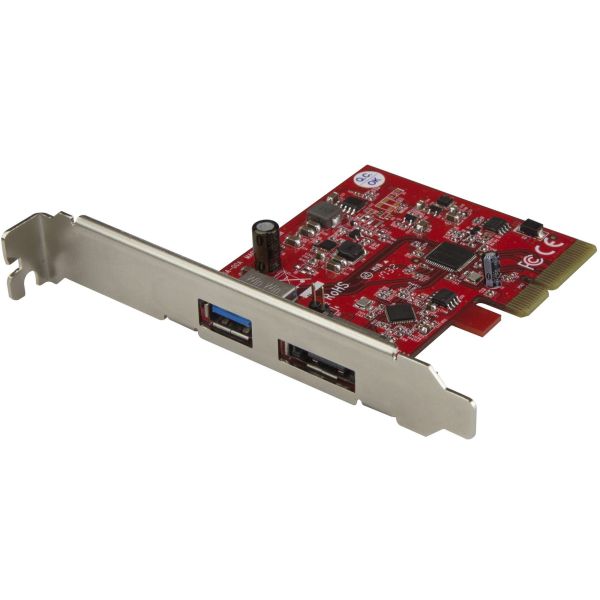

StarTech.com 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA

Marketing Information

This combination PCI Express controller card lets you add both a USB 3.2 Gen 2 port and an eSATA port to your desktop PC, through a single PCIe slot. The versatile controller card offers a cost-effective way to add high-performance connectivity to your computer, with support for newer USB 3.2 devices as well as eSATA hard drives.
At up to 10Gbps, the USB 3.2 PCIe card delivers the speed you need for seamless performance from your compatible devices. It's also backward compatible with previous versions of USB, so you can connect your existing USB 3.2 Gen 1 / 2.0 / 1.1 equipment.
The controller card also connects your computer to an eSATA device, providing a hot-pluggable, high-speed storage solution for backing up or archiving d...ata. With support for SATA I, II and III hard drives, and data transfer speeds of up to 6Gbps, the controller card offers reliable performance for your external SATA storage applications.
For added versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers.
The PEXUSB311A1E is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB311A1E
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA
Packaged Quantity: 1
Product Type: USB/eSATA Combo Adapter
Technical Information
Host Interface: PCI Express x4
Media & Performance
UASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 1
Number of USB 3.2 Ports: 1
Number of eSATA/USB Combo Ports: 1
Software
Operating System Supported:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2012
• Windows Server 2016
• Windows Server 2008 R2
• Windows Server 2019
• Linux

Physical Characteristics
Color Family: Red
Product Color: Red
Form Factor: Plug-in Card
Height: 99.1 mm
Width: 78.7 mm
Length: 94 mm
Weight (Approximate): 45.4 g
Miscellaneous
Package Contents:

• 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA
• 1 x Low-profile Bracket
• 1 x Quick-start Guide

Platform Supported:

• Linux
• PC

Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
