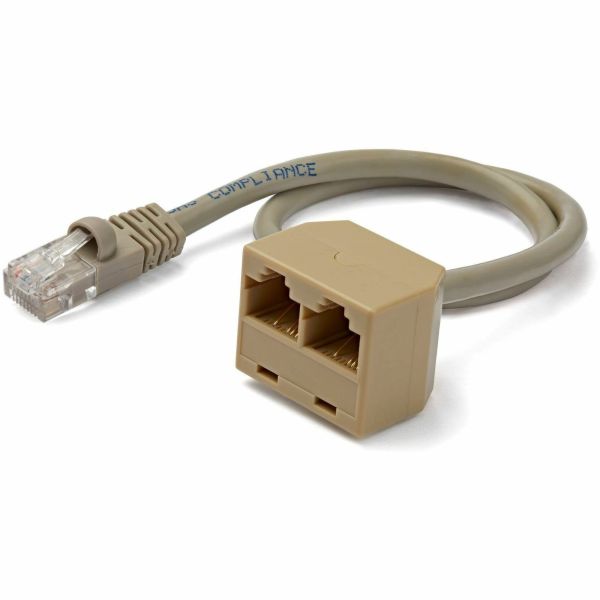

StarTech.com 2-to-1 RJ45 Splitter Cable Adapter - Network splitter - RJ-45 (M) - RJ-45 (F)

Marketing Information

The RJ45SPLITTER 2-to-1 RJ45 Splitter Cable Adapter increases the number of RJ45 network connections on an RJ45 outlet, allowing two 10/100 Ethernet signals through a single Cat5/Cat5e wire.

On one end of the installation the splitter enables you to connect two patch cables from a hub or switch to a single port on a patch panel; while on the other end of the installation the splitter connects to a single Cat5/Cat5e network drop through a wall outlet which can then be split and connected to two separate devices. The patch panel and wall outlet are connected through a single Cat5/Cat5e cable.

Designed and constructed for maximum durability, this Ethernet Splitter Cable is backed by StarTech.com's Lifetime Warranty.

~

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: RJ45SPLITTER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2-to-1 RJ45 Splitter Cable Adapter - Network splitter - RJ-45 (M) - RJ-45 (F)
Packaged Quantity: 1 Each
Product Type: Network Cable
Technical Information
Cable Type: RJ-45
Cable Characteristic: Splitter Cable
Number of Ways: 2-way
Cable Length: 33.02 cm
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Female
Connector on Second End Details: 2 x RJ-45 Network - Female
Conductor: Copper
Device Supported:

• Hub
• Switch
• Patch Panel
• Network Device
• Wall Outlet

American Wire Gauge: 24 AWG
Number of Conductors: 8
Physical Characteristics
Color Family: Beige
Product Color: Beige
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 19.8 g
