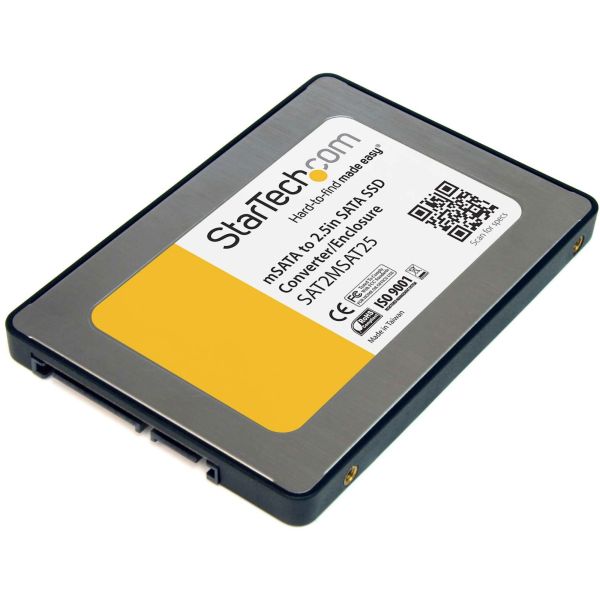

StarTech.com 2.5in SATA to Mini SATA SSD Adapter Enclosure

Marketing Information

The SAT2MSAT25 2.5in SATA to Mini SATA SSD Adapter Enclosure turns an mSATA (Mini SATA) mini-SSD into a standard 2.5in SATA SSD for use anywhere a 2.5in SATA drive can be used.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.

Featuring all of the standard mounting points that a normal 2.5in hard drive uses, the converter can be installed into External Hard Drive Enclosures, Hard Drive Docking Stations or into desktop or laptop computers. The enclosure also features a unique design that enables seamless data pass-through with no conversion bottlenecks, enabling the mSATA drive ...to work as fast as it's allowed by the host system/interface.

Constructed from aluminum and plastic, this converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SAT2MSAT25
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2.5in SATA to Mini SATA SSD Adapter Enclosure
Packaged Quantity: 1 Each
Product Type: mSATA to SATA Adapter
Physical Characteristics
Color Family: Silver
Product Color: Silver
Product Material:

• Plastic
• Aluminium

Height: 7.6 mm
Width: 71.1 mm
Length: 99.1 mm
Weight (Approximate): 51 g
Miscellaneous
Additional Information:

• Drive Connectors: 1 - mSATA (52 pin, Mini SATA) Slot
• Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
• Interface: SATA
• Number of Drives: 1
• Compatible Drive Types: mSATA (Mini SATA)
• Drive Installation: Fixed

Certifications & Standards:

• FCC
• CE

Country of Origin: Taiwan
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
