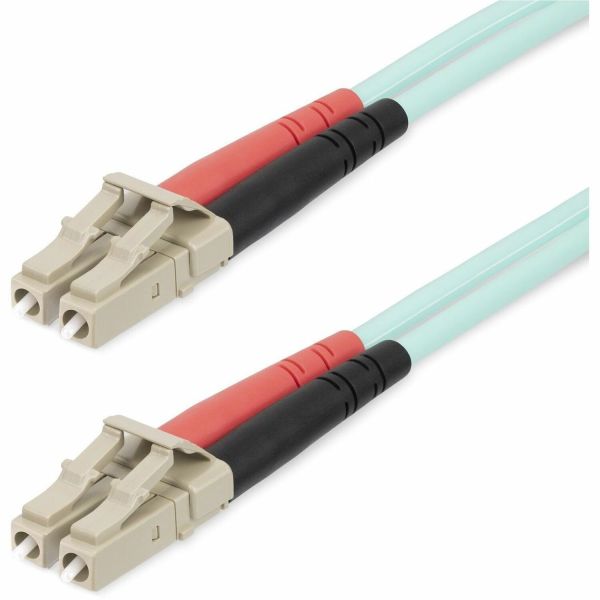

StarTech.com Fiber Optic Patch Network Cable

Marketing Information

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.

Engineered for Optimal Performance

With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.

Wide Compatibility

This multimo...de 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.

Flame Resistant

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 450FBLCLC25
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Fiber Optic Patch Network Cable
Packaged Quantity: 1
Product Type: Network Cable
Technical Information
Cable Type: Fibre Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Fiber Type: Duplex
Fiber Category: OM4
Cable Length: 25 m
Connector Type on First End: LC/UPC Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x LC/UPC Network - Male
Connector Type on Second End: LC/UPC Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x LC/UPC Network - Male
Jacket Type: LSZH
Device Supported: Network Device
Data Transfer Rate: 100 Gbit/s
Features:

• Zip Cord
• Flame Retardant
• UPC Polished Connector
• Molded
• Strain Relief
• Bendable

Physical Characteristics
Product Color: Aqua
Warranty
Limited Warranty: Lifetime
