StarTech.com DisplayPort Audio/Video Cable

Marketing Information

Faciliate multi-monitor setups using this DisplayPort 1.2 Cable 10-Pack. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 4K workstations, docks, and high performance GPUs. Connect a 4K 60Hz UHD DisplayPort monitor to a host computer or MST hub.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility with DP 1.1.

Durable Design

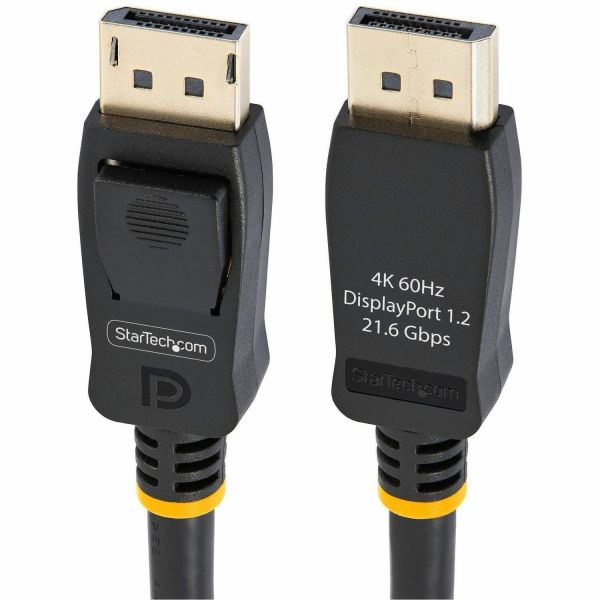

This DisplayPort cable features a flexible TPE outer jacket and can be routed around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching gold-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

The Certified DisplayPort Cable supports the following DP 1.2 features:

• Resolutions up to 4K 60Hz, using a compatible DP source and display
• Supports high refresh rates including 1080p 120Hz and 1440p 75Hz
• High-Bandwidth Digital Content Protection (HDCP) for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 8 Uncompressed Digital Audio Channels
• Backward compatible with DP 1.1

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DISPL2M10PK
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort Audio/Video Cable
Packaged Quantity: 10 Pack
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 2 m
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating:

• Gold
• Nickel

Shielding: Yes
Jacket Type: CMG
Device Supported:

• Audio/Video Device
• Workstation
• Dock
• External GPU
• Monitor
• Computer
• Hub
• Display
• Docking Station
• Projector
• Video Wall

American Wire Gauge: 28 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2160
Number of Conductors: 19
Features:

• Latching Connector
• 4K UHD
• High Bit Rate 2 (HBR2)
• Multi-Stream Transport (MST) Support
• Durable
• Flexible
• Strain Relief
• HDCP
• Braided
• EMI Protection
• Fray Resistant
• Damage Resistant

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: ABS
Connector Material:

• ABS
• Metal

Shielding Material: Aluminum Mylar Foil
Jacket Material: Thermoplastic Elastomer (TPE)
Material Details:

ABS - Shell

Weight (Approximate): 133.2 g
Warranty
Limited Warranty: Lifetime
