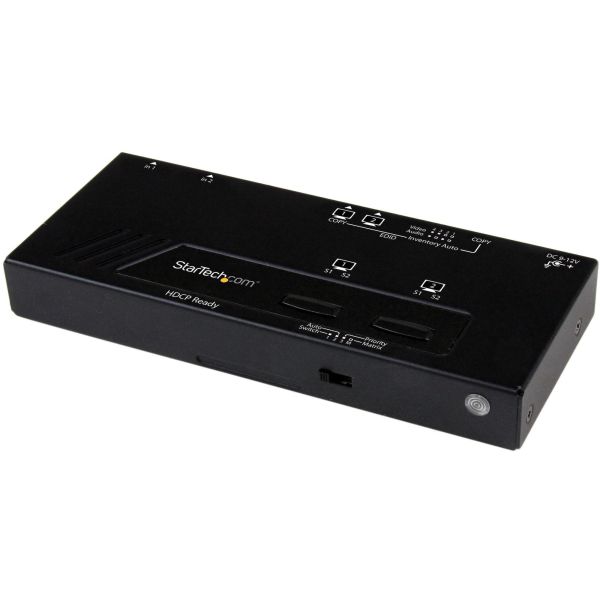

StarTech.com 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching - 1080p

Marketing Information

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher.This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copymaintaining your video resolution.

Seamless Signal Selection

Ensure seamless transition while switching video sources, with EDID copymaintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.

Effortless Control

Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually conn...ecting individual cables. Mounting hardware is also included for a tidy, professional installation.

Versatile Switching Options

Enjoy hassle-free operation with four different switching modes:

Automatic port selection: Enables your most recently activated video source to be displayed automatically.

Priority port selection:Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.

Matrix port selection:Independently switch two displays between two video sources.

Manual port selection:Enables you to manually select your HDMI source with easy-to-use front panel buttons.

This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: VS222HDQ
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching - 1080p
Packaged Quantity: 1
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 2
Device Supported:

• Display
• Blu-ray Disc Player
• Set-top Box
• Gaming Console

Number of Displays Supported: 2
Video
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 2
Number of HDMI Outputs: 2
Media & Performance
Maximum Operating Distance: 10 m
Power Description
Input Voltage:

• 12 V DC
• 120 V AC
• 230 V AC

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Height: 20 mm
Width: 65 mm
Depth: 157 mm
Weight (Approximate): 290 g
Miscellaneous
Package Contents:

• 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching - 1080p
• 1 x Universal Power Adapter (NA/UK/EU)
• 1 x Remote control
• 1 x Instruction Manual
• 1 x Foot pad set
• 1 x Mounting kit

Certifications & Standards:

• CE
• FCC

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
