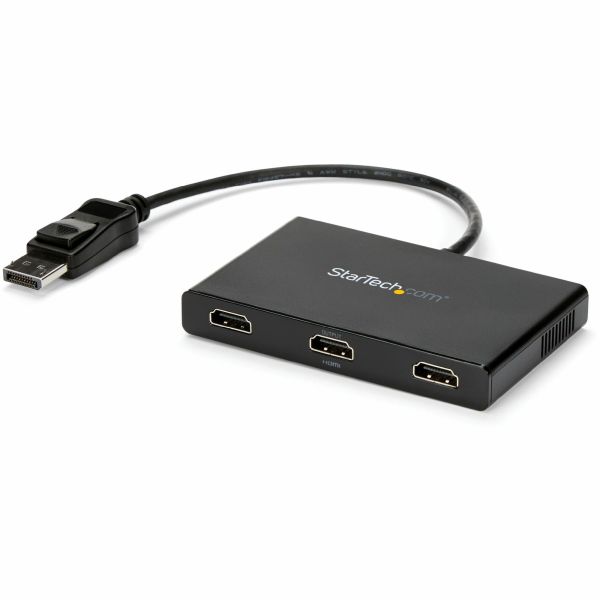

StarTech.com DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub

Marketing Information

This MST hub lets you connect three HDMI® monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

Configure your displays for any environment

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI television...s or projectorsfor remote viewing applications such as digital signage.

Enjoy amazing video qualitywithout draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MSTDP123HDwill act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP123HDsupports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 43%

Note: Exceeding 100% will reduce functionality.

Examples of Supported Resolution Configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Total % of Bandwidth 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 90% 2560x1440 @60hz (35%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 92% 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98% 3840x2160 @30hz (43%) 1920x1200 @60hz (30%) 1920x1080 @60hz (22%) 95% 3840x2160 @30hz (43%) 3840x2160 @30hz (43%) None 86%

Examples of Unsupported Resolution Configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106% 3840x2160 @30hz (43%) 2560x1600 @60hz (43%) 1920x1200 @60hz (30%) 116% 3840x2160 @30hz (43%) 2560x1600 @60hz (43%) 2560x1440 @60hz (35%) 121% 3840x2160 @30hz (43%) 3840x2160 @30hz (43%) 3840x2160 @30hz (38%) 124%

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MSTDP123HD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort to HDMI Multi-Monitor Splitter - 3-Port MST Hub
Packaged Quantity: 1 Each
Product Type: Signal Splitter
Video
Maximum Video Resolution: 3840 × 2160
Interfaces/Ports
DisplayPort: Yes
HDMI Out: Yes
Number of DisplayPort Inputs: 1
Number of HDMI Outputs: 3
Media & Performance
Maximum Operating Distance: 15.20 m
Power Description
Input Voltage:

• 120 V AC
• 230 V DC

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Plastic
Height: 15.2 mm
Width: 104.1 mm
Length: 330.2 mm
Weight (Approximate): 127 g
Miscellaneous
Certifications & Standards:

• CE
• FCC

Warranty
Limited Warranty: 3 Year
