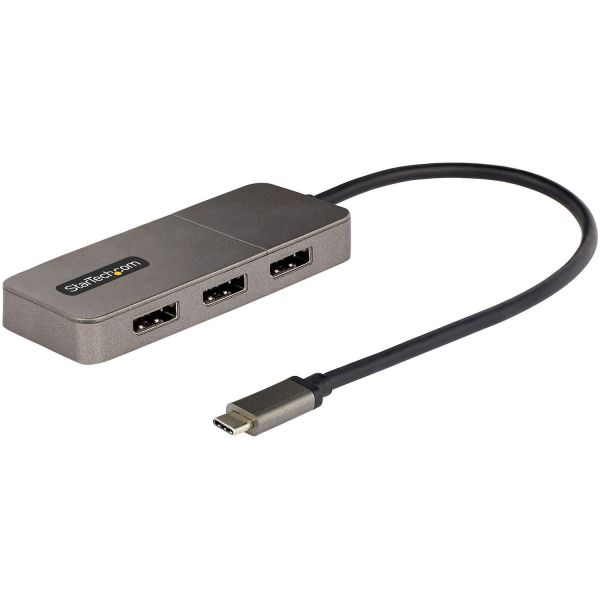

StarTech.com USB-C to 3x DisplayPort MST Hub

Marketing Information
This USB-C to DisplayPort MST Hub enables a connection to three DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C enabled host device.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Multi-tasking Made Easy

This USB-C to DisplayPort video splitter allows you to configure your displays in extended or duplicated mode. Connecting three independent 4K 60Hz displays creates high-performance workstations. This empowers increased multi-tasking across your organization, resulting... in increased productivity.

4K at 60Hz and HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Hassle-Free Setup

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to DisplayPort hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.

This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MST14CD123DP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB-C to 3x DisplayPort MST Hub
Packaged Quantity: 1
Product Type: A/V Adapter
Technical Information
Adapter Type: DisplayPort/USB-C
Connector Type on First End: USB Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 24-Pin USB Type C - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Female
Connector Gender on Second End: Female
Connector on Second End Details: 3 x DisplayPort 1.4 Digital Audio/Video - Female
Features:

• Active
• Multi-Stream Transport (MST) Support
• HDR Support
• Plug and Play
• Display Stream Compression (DSC)
• Strain Relief

Cable Length: 29.97 cm
Physical Characteristics
Color Family: Grey
Product Color: Grey
Height: 15.2 mm
Width: 104.1 mm
Length: 43.2 mm
Weight (Approximate): 51 g
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
