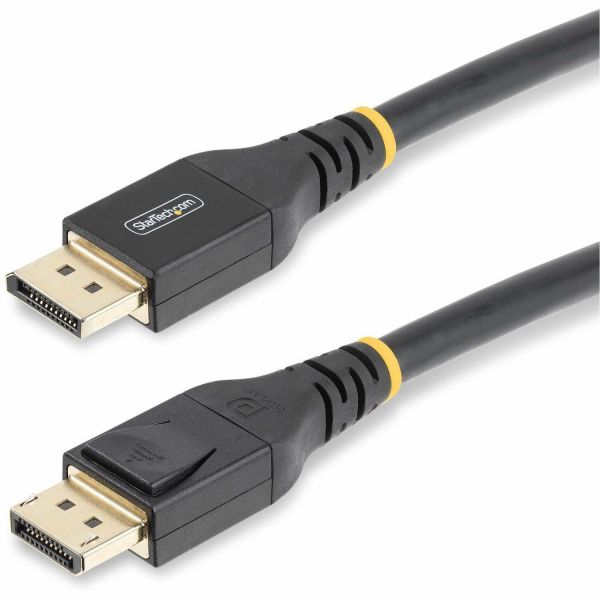

StarTech.com DisplayPort Audio/Video Cable

Marketing Information

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 32.8ft (10m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

VESA-Certified DP8K For seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2

Durable Design This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corne...r bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features: This 8K DisplayPort cable supports all DP 1.4 features:

Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display

HDCP 2.2 support

High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps

High Dynamic Range 10 (HDR10)

Display Stream Compression 1.2 (DSC 1.2)

Multi-Stream Transport (MST) for daisy-chaining multiple monitors

32 Uncompressed Digital Audio Channels

Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DP14A10MDPCABLE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DisplayPort Audio/Video Cable
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 10.06 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Jacket Type: VW-1
Device Supported:

• Monitor
• Signal Booster
• Video Wall
• Digital Signage Display

American Wire Gauge: 24/28 AWG
Data Transfer Rate: 25.9 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Active
• HDR10 Support
• Multi-Stream Transport (MST) Support
• Display Stream Compression (DSC) 1.2
• HDCP 2.2
• Latching Connector
• Strain Relief
• Flexible
• Halogen Free
• EMI Protection
• Flame Resistant
• Rugged
• Wear Resistant
• Bendable
• Tarnish Resistant

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Copper
Shielding Material: Aluminum Mylar Foil
Jacket Material: Thermoplastic Elastomer (TPE)
Material Details:

Copper - Cable

Warranty
Limited Warranty: 2 Year
