StarTech.com DB9 to 3.5mm RS232 Serial Cable

Marketing Information

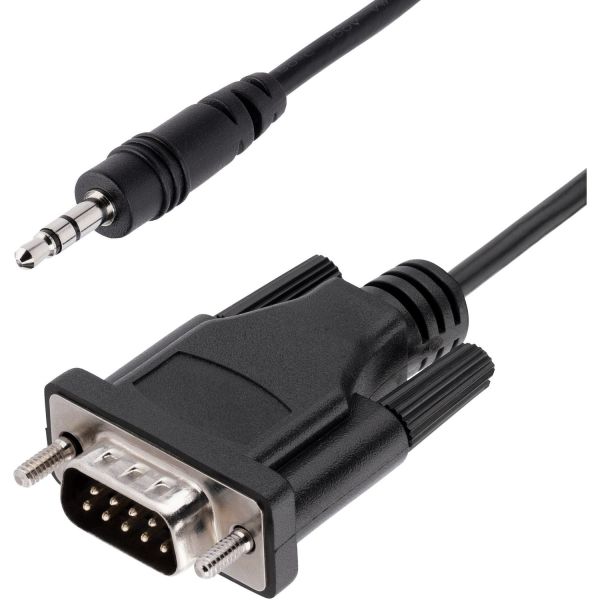

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, includin...g free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 9M351MRS232CABLE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: DB9 to 3.5mm RS232 Serial Cable
Packaged Quantity: 1
Product Type: Data Transfer Cable
Technical Information
Cable Length: 1 m
Connector Type on First End: Mini-phone Stereo Audio - Male
Connector on First End Details: 1 x Mini-phone Stereo Audio - Male
Connector Type on Second End: DB-9 RS-232 Serial - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
Connector Plating: Nickel
Shielding: Yes
Device Supported:

• Projector
• Digital Signage
• TV
• Audio Device
• Computer

American Wire Gauge: 28 AWG
Features:

• EMI Protection
• Molded
• Strain Relief
• Damage Resistant
• Strain Resistant
• Abrasion Resistant
• Screw Lock
• Bendable

Physical Characteristics
Product Color: Black
Product Material: Metal
Connector Material: Polyvinyl Chloride (PVC)
Shielding Material: Aluminum Mylar
Jacket Material: Polyvinyl Chloride (PVC)
Material Details: metal - shell
