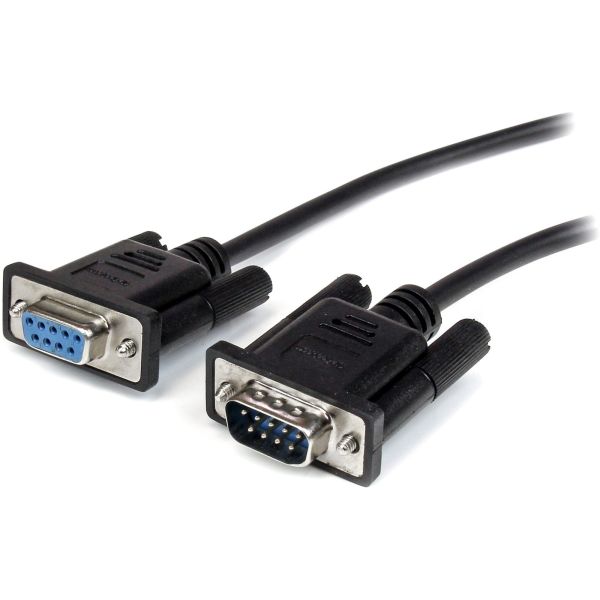

StarTech.com 3m Black Straight Through DB9 RS232 Serial Cable - M/F

Marketing Information

The MXT1003MBK Black Serial Extension Cable (3m) features one DB9 male connector and one DB9 female connector, providing a high quality extension for your RS232 serial devices, which enables you to position your peripheral devices as needed.

Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is backed by our Lifetime Warranty.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MXT1003MBK
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 3m Black Straight Through DB9 RS232 Serial Cable - M/F
Packaged Quantity: 1 Each
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial
Cable Characteristic: Extension Cable
Cable Configuration: Straight-through
Cable Length: 3 m
Connector Type on First End: DB-9 RS-232 Serial - Male
Connector on First End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
Connector Type on Second End: DB-9 RS-232 Serial - Female
Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial - Female
Connector Plating: Nickel
Conductor: Copper
Shielding: Yes
American Wire Gauge: 28 AWG
Features:

• Molded
• EMI Protection
• Strain Relief

Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 147.4 g
Shipping Height: 18.03 mm
Shipping Width: 124.97 mm
