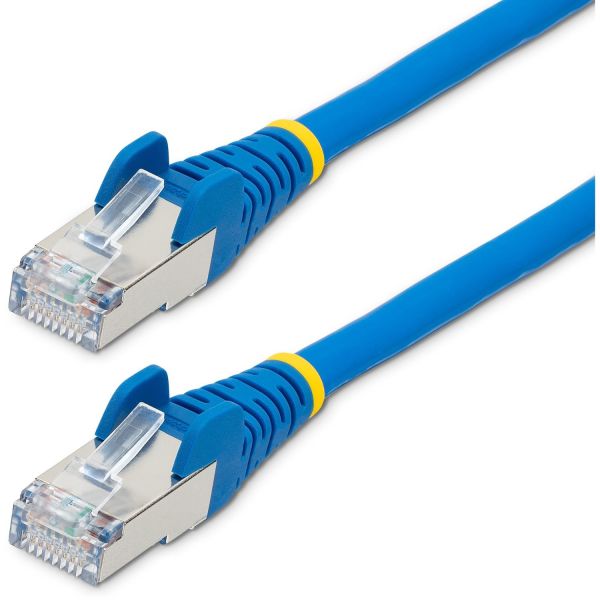

StarTech.com CAT6A LSZH Ethernet Cable

Marketing Information

Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.

Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable

LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.

100W Power over Ethernet (PoE++)

This high performance Ethernet cable complies with the IEEE 802....3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

RJ45 Connectors with Snagless Clips

The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.

The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points.

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: NLBL-3M-CAT6A-PATCH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: CAT6A LSZH Ethernet Cable
Packaged Quantity: 1 Pack
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Characteristic: Patch Cable
Cable Length: 3 m
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ.5 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Contact Plating: Gold
Shielding: Yes
Jacket Type: LSZH
Device Supported: Network Device
American Wire Gauge: 27 AWG
Data Transfer Rate: 10 Gbit/s
Boot Type:

• Snagless
• Molded

Number of Pairs: 4
Features:

• PoE
• PoE++
• Stranded
• EMI/RF Protection
• Noise Protection
• Corrosion-free
• Fire Resistant
• Latch Protection
• Snag Resistant
• Strain Relief
• Minimized Near-End Crosstalk (NEXT)
• PVC Free
• Damage Resistant
• Bendable

Physical Characteristics
Product Color: Blue
Product Material:

• Copper
• Foil

Material Details: Copper - Conductor
foil - Twisted Pair
Weight (Approximate): 108.4 g
Warranty
Limited Warranty: Lifetime
