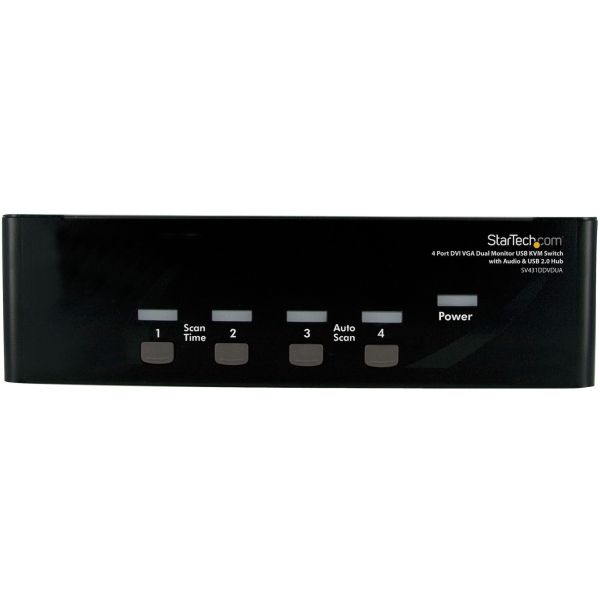

StarTech.com 4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub

Marketing Information

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI...-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV431DDVDUA
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 4
Number of Local Users Supported: 1
Video
Graphic Mode:

• SVGA
• WUXGA

Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
USB: Yes
DVI: Yes
VGA: Yes
Number of USB Ports: 8
Number of DVI Ports: 5
Number of VGA Ports: 5
Power Description
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Rack-mountable
• Desktop

Height: 61 mm
Width: 221 mm
Depth: 129.5 mm
Weight (Approximate): 1.30 kg
Miscellaneous
Additional Information:

• High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration.
• Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
• Absolutely no software or drivers required providing a completely OS independent KVM solution.

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
