StarTech.com Gigabit Ethernet Card

Marketing Information

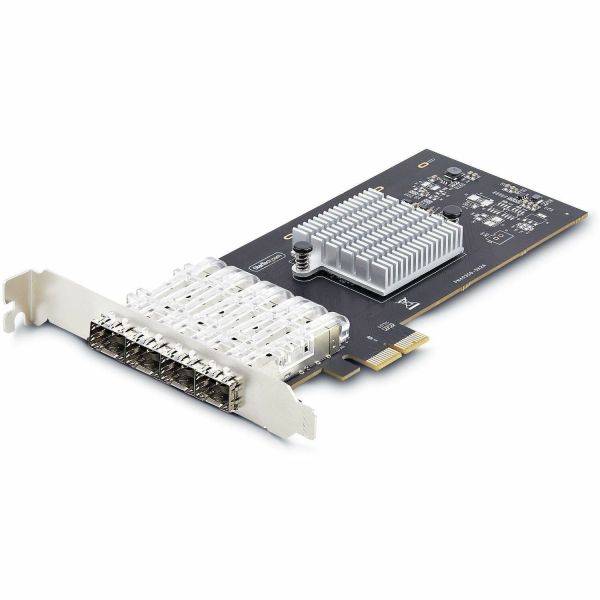

Add up to four 1GbE SFP modules to a PCI Express (PCIe) 2.0 x2 (or higher) slot in an IT Administrator workstation or server backplane, using this 4-Port SFP Network Controller.

High Performance Intel Chipset

The network controller features an Intel I350 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operatin...g system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.

Hardware and Operating System Compatibility

The network interface controller connects to an available x2 PCI Express 2.0 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC).

Flexible Network Connections

The card features four SFP slots for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: P041GINETWORKCARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Gigabit Ethernet Card
Packaged Quantity: 1
Product Type: Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Intel
Chipset Model: I350-AM4
Interfaces/Ports
Host Interface: PCI Express 2.0 x2
Total Number of Ports: 4
I/O Expansions
Expansion Slot Type: SFP (mini-GBIC)
Media & Performance
Media Type Supported: Optical Fiber
Maximum Data Transfer Rate: 1000 Mbit/s
Network & Communication
Network Technology:

• 1000Base-T
• 1000Base-KX
• 1000Base-SX
• 1000Base-LX

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Bracket Height: Standard Profile
Height: 10.2 mm
Width: 83.8 mm
Depth: 167.6 mm
Miscellaneous
Application/Usage: Network
Device Supported:

• Computer
• Server
• Workstation
