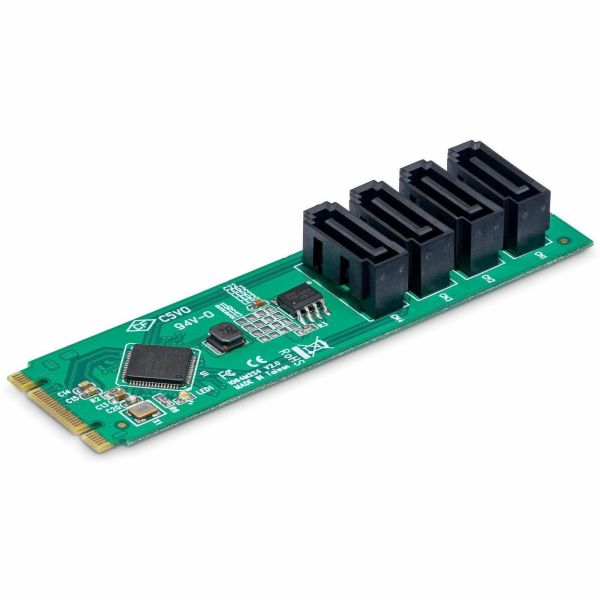

StarTech.com 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card for Windows/macOS/Linux

Marketing Information

Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.

Cost-Effective Storage Expansion

This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.

Compatibility

The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's ...Storage Spaces.

Applications

This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.

ASMedia ASM1064 Chipset

The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 4P-SATA-M2-ADAPTER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card for Windows/macOS/Linux
Packaged Quantity: 1
Product Type: M.2 to SATA Adapter
Physical Characteristics
Color Family: Green
Product Color: Green
Height: 11 mm
Width: 22 mm
Length: 80 mm
Weight (Approximate): 8 g
Miscellaneous
Device Supported:

• Desktop PC
• Solid State Drive
• Hard Drive

Country of Origin: Taiwan
