StarTech.com USB Adapter

Marketing Information

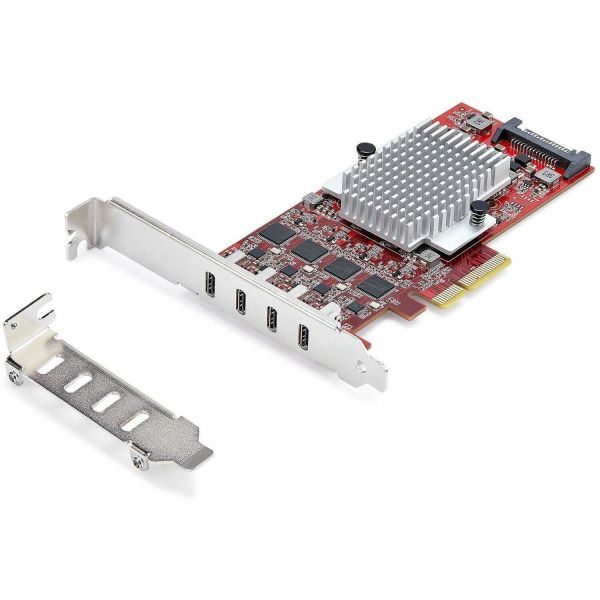

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, te...thered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

Charge and Sync USB Devices

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

Compatibility

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: P10Q4C-USB-CARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Adapter
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x4
Features: Plug and Play
Media & Performance
Data Transfer Rate:

• 1.25 GB/s
• 640 MB/s
• 60 MB/s
• 1.50 MB/s
• 140.80 kB/s

UASP Support: Yes
Interfaces/Ports
USB Version: 3.2 Gen 2
Total Number of USB Ports: 4
Number of SATA Ports: 1
USB Connector Type: Type-C
Software
Operating System Supported:

• Windows 10
• Windows 11
• Windows Server 2019
• Windows Server 2022
• Linux 2.6.31
• macOS Sonoma
• macOS Ventura

Physical Characteristics
Color Family: Red
Product Color: Red
Form Factor: Internal
Height: 119.4 mm
Width: 55.9 mm
Length: 139.7 mm
Weight (Approximate): 119.1 g
Miscellaneous
Package Contents:

• USB Adapter
• 1 x Low-Profile Bracket
• 1 x Quick-Start Guide

Application/Usage:

• Desktop
• Server

Platform Supported:

• PC
• Mac

TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
